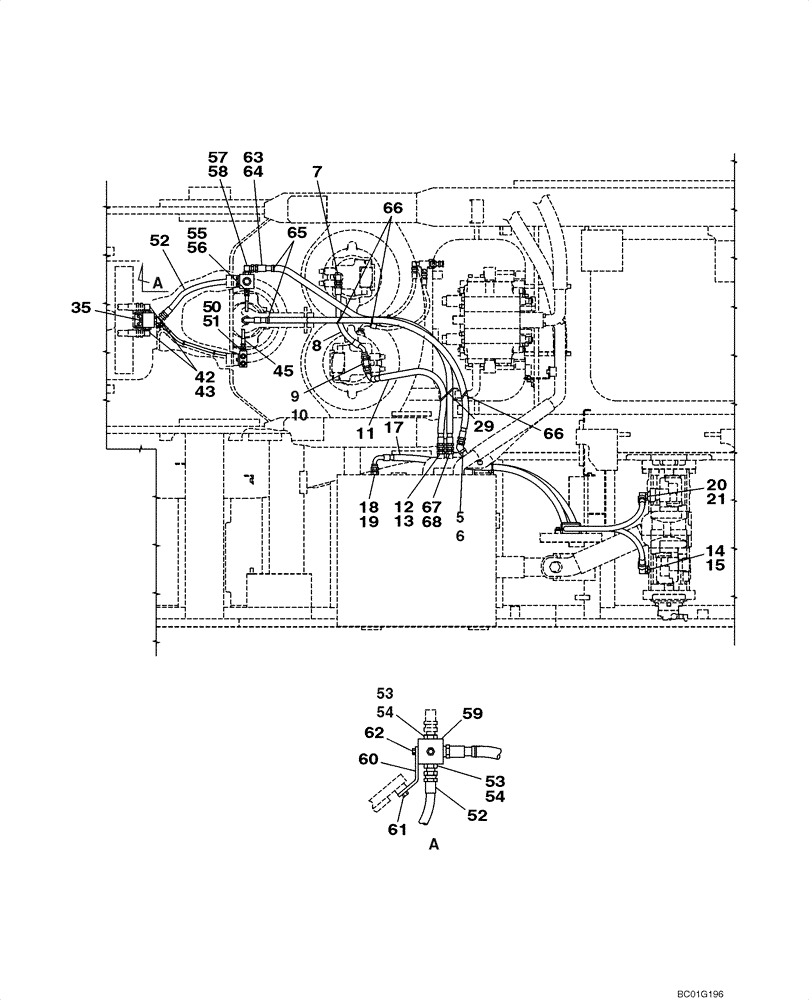

Запчасти Case CX800 (08-08) - HYDRAULICS - DRAIN LINE, MODELS WITH LOAD HOLD (08) - HYDRAULICS

Models With Load Hold

1шт.

5

157586A1

ELBOW

Incl. 6

1шт.

6

154503A1

O-RING

1шт.

7

168609A1

ELBOW

1шт.

8

KUJ0238

HYDRAULIC HOSE,19.00 mm ID x 470.00 mm

1шт.

9

163114A1

TEE

Incl. 10

1шт.

10

154487A1

O-RING

1шт.

11

KTJ2094

HYDRAULIC HOSE,19.05 mm ID x 1100.00 mm

1шт.

12

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 13

1шт.

13

154503A1

O-RING

1шт.

14

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 15

1шт.

15

154503A1

O-RING

1шт.

16

KUJ0110

HYDRAULIC HOSE,19.00 mm ID x 2350.00 mm

1шт.

17

151012A1

PLASTIC-RUBBER TUBE

1шт.

18

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 19

11шт.

19

154503A1

O-RING

1шт.

20

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 21

1шт.

21

154503A1

O-RING

1шт.

29

150071A1

MOUNTING CLIP

1шт.

35

166352A1

BOLT

With Attached Washer

2шт.

42

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 43

1шт.

43

154503A1

O-RING

1шт.

45

164231A1

HYDRAULIC HOSE

1шт.

50

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 51

1шт.

51

154475A1

O-RING

1шт.

52

KRJ0666

HYDRAULIC HOSE,19.00 mm ID x 830.00 mm

1шт.

53

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 54

2шт.

54

154503A1

O-RING

1шт.

55

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 56

1шт.

56

154475A1

O-RING

1шт.

57

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 58

1шт.

58

154503A1

O-RING

1шт.

59

KUJ0373

MANIFOLD VALVE

1шт.

60

162012A1

BRACKET

1шт.

61

166052A1

BOLT

With Attached Washer

2шт.

62

166350A1

BOLT

With Attached Washer

2шт.

63

KUJ0377

HYDRAULIC HOSE,19.00 mm ID x 1800.00 mm

1шт.

64

KHV0466

PLASTIC-RUBBER TUBE

1шт.

65

150067A1

MOUNTING CLIP

150 mm (6 in)

2шт.

66

150071A1

MOUNTING CLIP

3шт.

67

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 68

1шт.

68

154503A1

O-RING

1шт.
