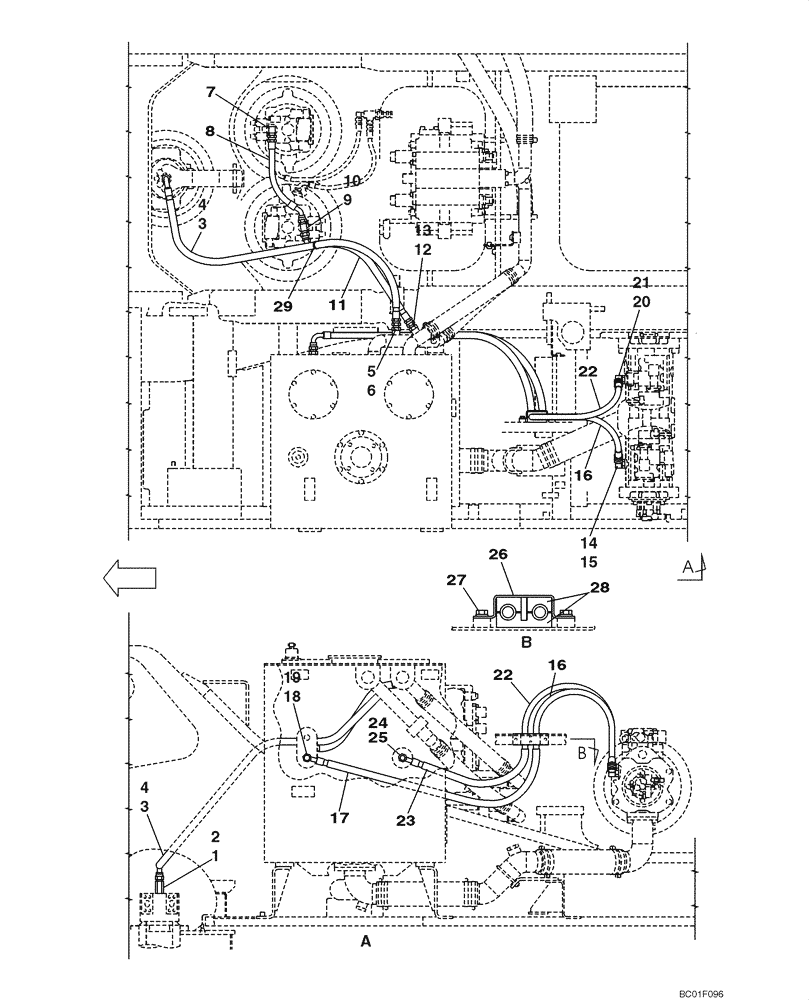

Запчасти Case CX800 (08-07) - HYDRAULICS - DRAIN LINE, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

Models Without Load Hold

1шт.

1

156664A1

STUD

Incl. 2

1шт.

2

154503A1

O-RING

1шт.

3

KUJ0241

HYDRAULIC HOSE,19.00 mm ID x 2000.00 mm

1шт.

4

157867A1

PLASTIC-RUBBER TUBE

1шт.

5

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 6

1шт.

6

154503A1

O-RING

1шт.

7

168609A1

ELBOW

1шт.

8

KUJ0238

HYDRAULIC HOSE,19.00 mm ID x 470.00 mm

1шт.

9

163114A1

TEE

Incl. 10

1шт.

10

154487A1

O-RING

1шт.

11

KTJ2094

HYDRAULIC HOSE,19.05 mm ID x 1100.00 mm

1шт.

12

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 13

1шт.

13

154503A1

O-RING

1шт.

14

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 15

1шт.

15

154503A1

O-RING

1шт.

16

KUJ0110

HYDRAULIC HOSE,19.00 mm ID x 2350.00 mm

1шт.

17

151012A1

PLASTIC-RUBBER TUBE

1шт.

18

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 19

1шт.

19

154503A1

O-RING

1шт.

20

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 21

1шт.

21

154503A1

O-RING

1шт.

22

KRJ4590

HYDRAULIC HOSE,19.00 mm ID x 1650.00 mm

1шт.

23

157865A1

TUBE,28 mm ID, 34 mm OD, 800 mm Length

1шт.

24

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 25

1шт.

25

154503A1

O-RING

1шт.

26

KTJ2096

BRACKET

1шт.

27

166351A1

BOLT,Sems, M10 x 20mm

2шт.

28

161163A1

COLLAR

2шт.

29

150071A1

MOUNTING CLIP

1шт.

30

150860A1

COLLAR

Not Illustrated

1шт.

31

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

M6 x 8, Not Illustrated

1шт.
