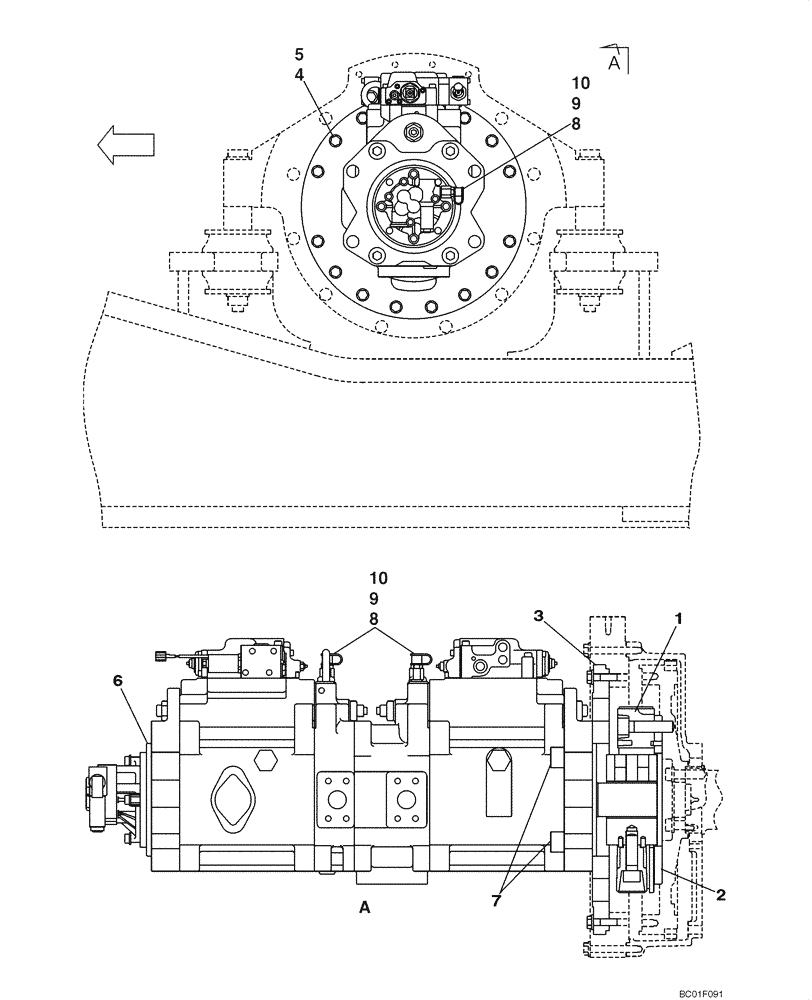

Запчасти Case CX800 (08-02) - PUMP ASSY, HYDRAULIC - COUPLING (08) - HYDRAULICS

1

KUJ0002

FLEXIBLE COUPLING

1шт.

2

KUJ0351

PLATE

1шт.

3

KUJ0350

PLATE

1шт.

4

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

16шт.

5

150811A1

WASHER

M12

16шт.

6

KUJ0309

PUMP, HYDRAULIC

See Figures 08-56 - 08-61A

1шт.

87341996

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

87341997

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

7

108R024Y080R

BOLT

4шт.

8

KHJ2620

BUSHING

Replaces 151136A1, Incl. 9

3шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

1541849C1

COUPLING

Incl. 237-6006, H434163

3шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

H434163

DUST CAP

1шт.
