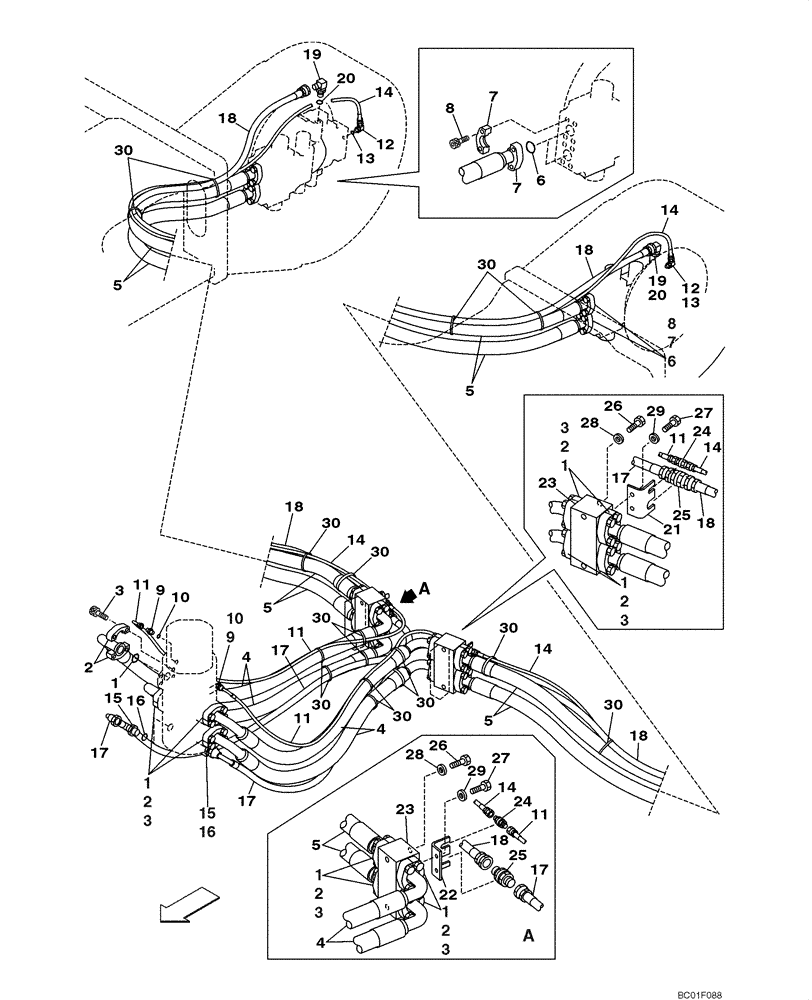

Запчасти Case CX800 (06-06) - HYDRAULICS - TRACK DRIVE (06) - POWER TRAIN

1

164450A1

O-RING

12шт.

2

150124A1

FLANGE

Split

24шт.

3

862-14045

HEX SOC SCREW,M14 x 45mm, Cl 12.9

48шт.

4

KUA0142

HYDRAULIC HOSE,31.80 mm ID x 1300.00 mm

4шт.

5

KUA0376

HYDRAULIC HOSE,31.80 mm ID x 2050.00 mm

4шт.

6

155211A1

O-RING

4шт.

7

150561A1

FLANGE

Split

8шт.

8

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

16шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 10

2шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

161482A1

HOSE ASSY.

1650 mm (65 in)

2шт.

12

KAJ2840

ELBOW

Incl. 13

2шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

167352A1

HOSE,2500.00 mm

2шт.

15

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 16

2шт.

16

154503A1

O-RING

1шт.

17

KUA0144

HYDRAULIC HOSE,15.90 mm ID x 1500.00 mm

2шт.

18

KUA0145

HYDRAULIC HOSE,15.90 mm ID x 2200.00 mm

2шт.

19

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 20

2шт.

20

154503A1

O-RING

1шт.

20a

159198A1

ADAPTER

Not Illustrated

2шт.

21

KUA0147

SUPPORT

1шт.

22

KUA0189

SUPPORT

1шт.

23

KUA0146

MANIFOLD

2шт.

24

159481A1

ADAPTER

2шт.

25

KHJ0508

FITTING

2шт.

26

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

4шт.

27

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

28

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

29

150811A1

WASHER

M12

4шт.

30

150071A1

MOUNTING CLIP

16шт.
