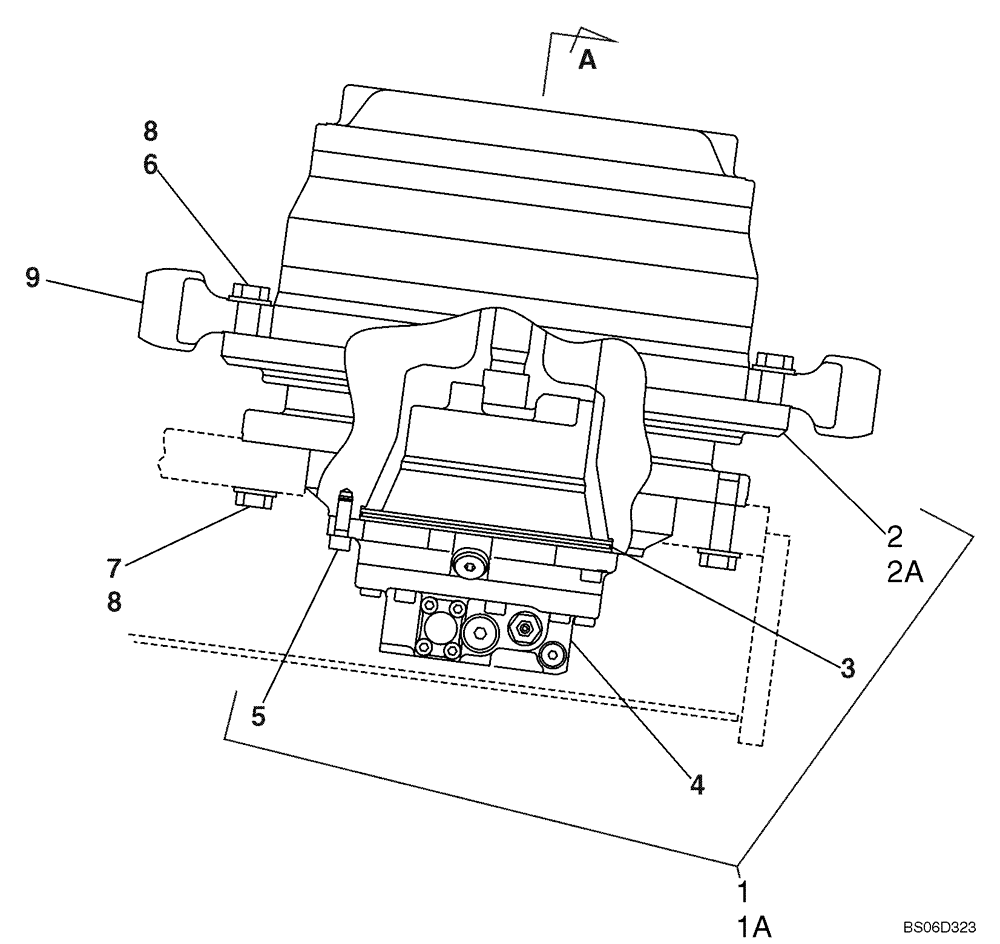

Запчасти Case CX800 (06-01) - TRACK DRIVE ASSY (06) - POWER TRAIN

1

KUA0280

MOTO-REDUCTION GEAR

Travel, Incl. 2 - 5; No Longer Available, For Service Order KUA10540

2шт.

1a

KUA10540

MOTO-REDUCTION GEAR

Travel, Incl. 2A - 5

2шт.

2

KUA0281

REDUCER

See Figure 06-02; No Longer Available, For Service Order KUP10150

1шт.

2a

KUP10150

REDUCER

See Figure 06-02A

1шт.

3

151524A1

O-RING

1шт.

4

KUA0282

MOTOR, HYDRAULIC

See Figure 06-03 - 06-05

1шт.

5

150807A1

BOLT,Hex Skt, M18 x 2.5 x 50mm

4шт.

6

102R027Y090N

BOLT

48шт.

7

102R027Y100N

BOLT

52шт.

8

157544A1

WASHER

100шт.

9

KUA0044

SPROCKET

2шт.
