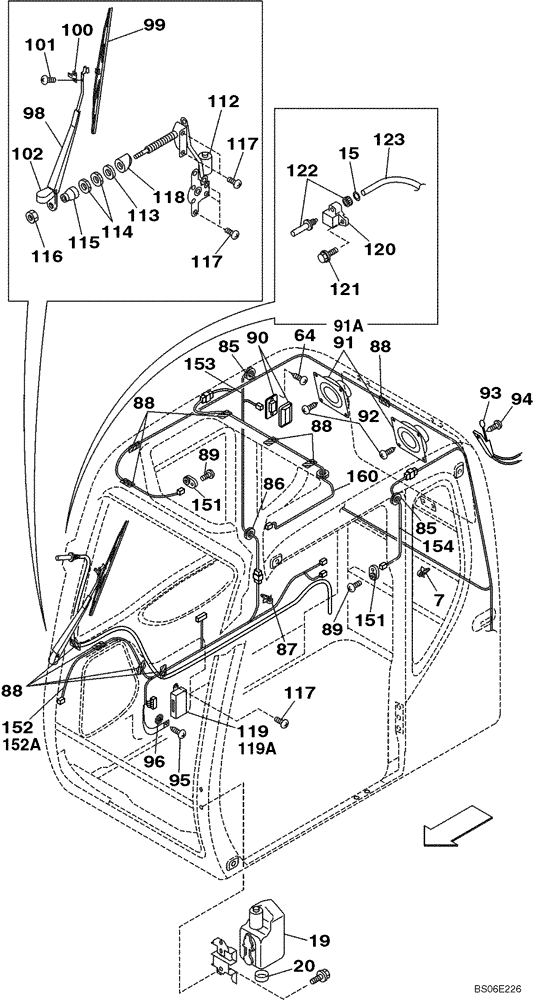

Запчасти Case CX800 (04-06) - CAB ELECTRICAL - WIPER, WINDSHIELD (04) - ELECTRICAL SYSTEMS

7

161381A1

COLLAR

4шт.

15

161363A1

GROMMET

1шт.

19

161374A1

RESERVOIR ASSY.

Incl. 20

1шт.

20

KHN2506

PLUG

1шт.

64

KHN2687

SCREW,Spcl

M5 x 14

2шт.

85

KHN2709

GROMMET

2шт.

86

KHN2710

GROMMET

1шт.

87

KHN2711

CABLE CLIP

1шт.

88

KHN2712

FASTENER

10шт.

89

KHN2713

SCREW,Spcl

M5 x 16

2шт.

90

KHN2714

COURTESY LIGHT

DOME LIGHT

1шт.

91

KHN2715

SPEAKER

Incl. 91A

2шт.

91a

KHN2935

SIEVE

1шт.

92

KHN2716

SCREW,Spcl

M4 x 12

8шт.

93

KHN2717

ANTENNA

1шт.

94

KHN2718

SCREW,Spcl

M3,5 x 16

1шт.

95

KHN2719

SCREW,Spcl

M6 x 12

1шт.

96

KHN2720

WASHER

1шт.

98

KHN2730

WIPER ARM

1шт.

99

KHN2731

WIPER BLADE

1шт.

100

KHN2732

ADAPTER

1шт.

101

KHN2733

SCREW,Spcl

2шт.

102

KHN2734

CAP ASSY.

1шт.

KHN3544

WIPER MOTOR

MOTOR, WIPER Incl. 112 - 116; Replaces KHN2735

1шт.

112

NSS

NOT SOLD SEPARAT

Motor, Wiper

1шт.

113

KHN2737

WASHER

1шт.

114

KHN2738

SPECIAL NUT

2шт.

115

KHN2739

CAP

1шт.

116

KHN2740

SPECIAL NUT

1шт.

117

KHN2741

SCREW,Spcl

M6 x 16

8шт.

118

KHN2742

SPACER

1шт.

119

KHR4123

CONVERSION KIT

Replaces KHN2743; Used With KHN3305 Cab

1шт.

119a

KHN3392

ECU

Used With KHN10110 Cab

1шт.

119a

KHN3392R

REMAN ELECT CONTROL

Used With KHN10110 Cab

1шт.

119a

KHN3392C

CORE-ELECTRONIC CONT

Return Number

1шт.

120

KHN2744

SUPPORT

1шт.

121

KHN2745

BOLT,Spcl

M6 x 1 x 50

1шт.

122

KHN2746

NOZZLE

1шт.

123

KHN2747

HOSE

1шт.

151

KHR2950

LIMIT SWITCH

2шт.

152

KHR3188

HARNESS

No Longer Available, Used With KHR2743 & KHR4123 Electronic Unit, For Service Order KHR4121 Harness and KHN3392 Electronic Unit

1шт.

152a

KHR4121

HARNESS

Replaces KHR3188

1шт.

153

KHR3190

HARNESS

1шт.

154

KHR3191

HARNESS

1шт.

160

KHR3349

HARNESS

1шт.
