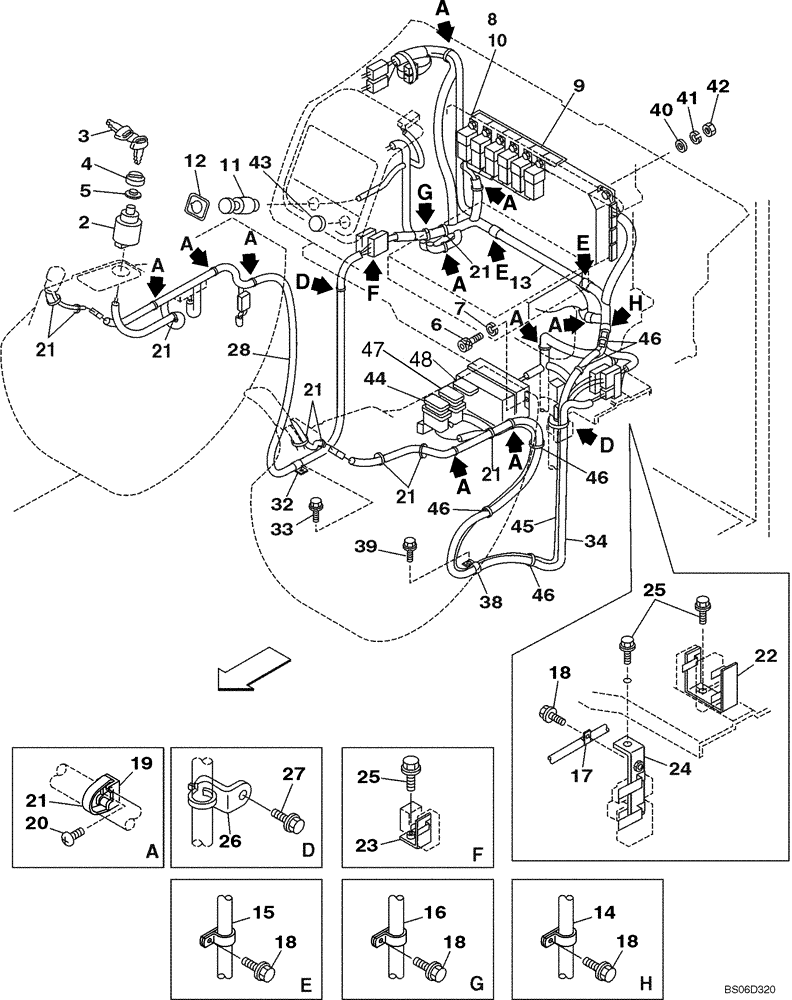

Запчасти Case CX800 (04-04) - ELECTRICAL - CAB (04) - ELECTRICAL SYSTEMS

KHR20050

IGNITION SWITCH

SWITCH, IGNITION, Incl. 2 - 5, Replaces KHR3270

1шт.

2

KHR3078

IGNITION SWITCH

1шт.

3

KHR20070

IGNITION KEY

KEY CASE, Replaces 150979A1

1шт.

4

KHR3080

CAP

1шт.

5

KHR3081

WASHER

1шт.

6

862-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

2шт.

7

892-11006

LOCK WASHER,M6

2шт.

8

159919A1

RELAY

5-6шт.

9

KUP0073

LABEL

1шт.

10

159602A1

BOLT,Sems, Hex, M6 x 16mm

5-6шт.

11

KHR2488

LIGHTER, CIGARETTE

1шт.

12

KHR3141

PROTECTOR

1шт.

13

KUR0080

HARNESS

1шт.

13a

231959A1

DIODE

Not Illustrated

1шт.

14

159149A1

COLLAR

1шт.

15

157807A1

COLLAR

2шт.

16

157806A1

COLLAR

Replaces 153039A1

1шт.

17

159150A1

COLLAR

1шт.

18

159602A1

BOLT,Sems, Hex, M6 x 16mm

5шт.

19

150860A1

COLLAR

10шт.

20

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

10шт.

21

150067A1

MOUNTING CLIP

150 mm (6 in)

19шт.

22

KHR2746

BRACKET

1шт.

23

KHR2747

BRACKET

1шт.

24

KHR2748

BRACKET

1шт.

25

166345A1

BOLT

With Attached Washer

3шт.

26

KHR2580

CLAMP

2шт.

27

159905A1

BOLT,Sems, Hex, M6 x 25mm, Spcl

2шт.

28

KHR3181

HARNESS

1шт.

32

157806A1

COLLAR

1шт.

33

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

34

KHR2712

HARNESS

1шт.

38

159150A1

COLLAR

1шт.

39

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

40

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

41

892-11006

LOCK WASHER,M6

4шт.

42

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

43

KHR2743

CAP COVER

1шт.

44

KHR3718

SWITCH

1шт.

45

KUR0082

HARNESS

1шт.

46

150067A1

MOUNTING CLIP

150 mm (6 in)

6шт.

47

KHR3196

SWITCH

1шт.

48

KHR2913

CAP

1шт.
