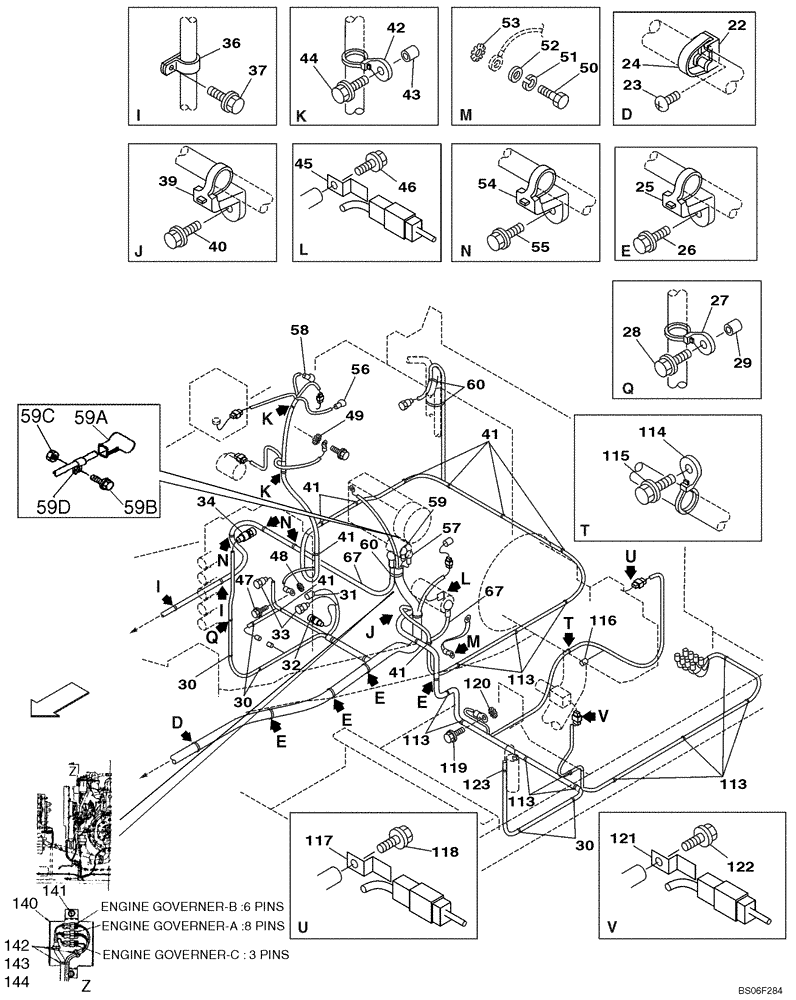

Запчасти Case CX800 (04-02) - ELECTRICAL - CHASSIS, UPPERSTRUCTURE (04) - ELECTRICAL SYSTEMS

22

150860A1

COLLAR

1шт.

23

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

24

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

25

KHR2581

CLAMP

4шт.

26

KHJ1215

BOLT,Spcl

4шт.

27

KHR2583

CLAMP

1шт.

28

159905A1

BOLT,Sems, Hex, M6 x 25mm, Spcl

1шт.

29

152158A1

SPACER

1шт.

30

KHR2787

CLAMP

5шт.

31

159899A1

PRESSURE SWITCH

Pressure, Upper

1шт.

31

KHR10800

PRESSURE SWITCH

Use If Switch Has A Pigtail Connector

1шт.

32

159900A1

PRESSURE SWITCH

Pressure, Travel (Back-up Alarm)

1шт.

32

KHR10810

PRESSURE SWITCH

SENSOR, Use If Switch Has A Pigtail Connector

1шт.

33

168135A1

SENSOR,50 MPa

Pressure

2шт.

34

KHR2915

SENSOR,5 MPa

Pressure (neg-cont.)

1шт.

36

162150A1

CLAMP

2шт.

37

167518A1

BOLT

2шт.

39

KHR2581

CLAMP

1шт.

40

KHJ1215

BOLT,Spcl

1шт.

41

KHR2787

CLAMP

9шт.

42

KHR2584

CLAMP

2шт.

43

C4E6960

SPACER

1-2шт.

43a

153081A1

WASHER

Not Illustrated

1шт.

44

KHR2309

BOLT,Spcl

2шт.

45

158962A1

CLIP

1шт.

46

167518A1

BOLT

1шт.

47

167518A1

BOLT

1шт.

48

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

49

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

50

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

51

892-11012

LOCK WASHER,M12

1шт.

52

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

53

893-11012

LOCK WASHER,Ext Tooth, M12

1шт.

54

162150A1

CLAMP

3шт.

55

167518A1

BOLT

3шт.

56

159172A1

CAP

1шт.

57

159173A1

CAP

1шт.

58

159182A1

DUST CAP

1шт.

59

159184A1

CAP

1шт.

59a

KHR4114

PROTECTOR

1шт.

59b

167518A1

BOLT

1шт.

59c

43362

NUT,M8 x 1.25, Cl 10

1шт.

59d

162150A1

CLAMP

1шт.

60

150496A1

MOUNTING CLIP

250 mm (10 in)

3шт.

67

KHR3291

CABLE ASSY.

2шт.

113

KHR2787

CLAMP

12шт.

114

KHR2584

CLAMP

1шт.

115

KHJ1215

BOLT,Spcl

1шт.

116

KHR2433

SENSOR

Hydraulic Oil Temperature

1шт.

117

165405A1

CLIP

1шт.

118

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

119

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

120

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

121

158962A1

CLIP

1шт.

122

167518A1

BOLT

1шт.

123

150496A1

MOUNTING CLIP

250 mm (10 in)

2шт.

140

KTR0571

BRACKET

Used On Some Models

1шт.

141

166352A1

BOLT

Used On Some Models

2шт.

142

150860A1

COLLAR

Used On Some Models

3шт.

143

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

Used on some models

3шт.

144

150496A1

MOUNTING CLIP

Used On Some Models

3шт.
