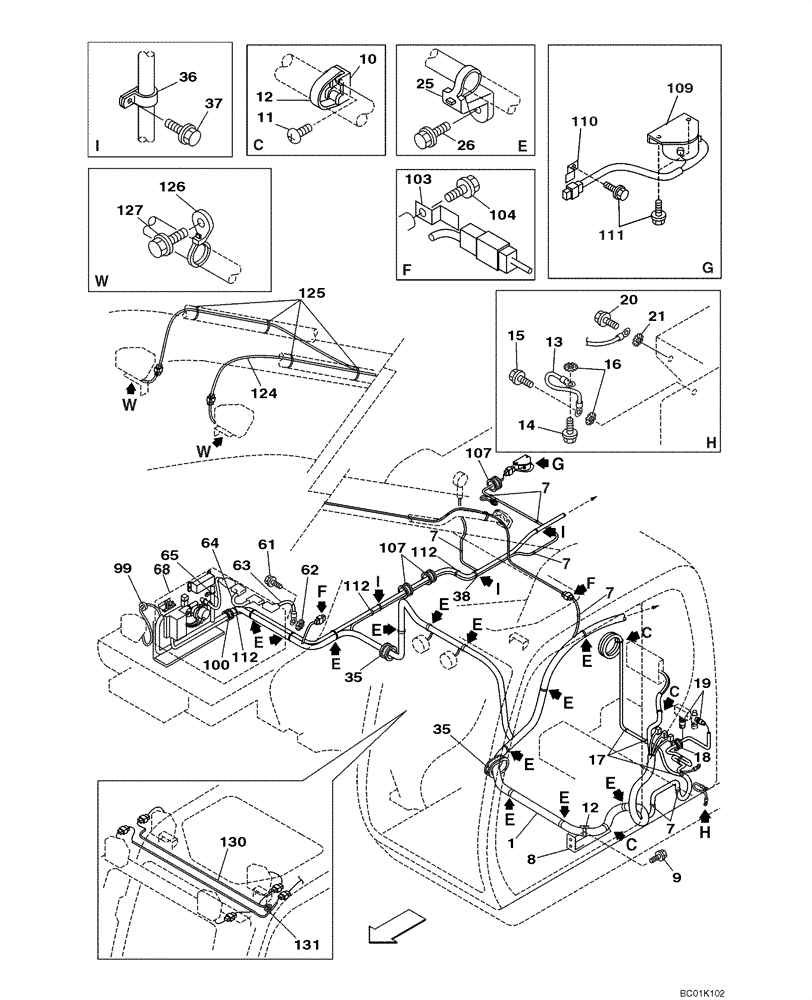

Запчасти Case CX800 (04-01) - ELECTRICAL - CHASSIS, UPPERSTRUCTURE (04) - ELECTRICAL SYSTEMS

1

KUR0097

HARNESS

Replaces KUR0085

1шт.

7

KHR2787

CLAMP

7шт.

8

KRR1251

BRACKET

1шт.

9

166351A1

BOLT,Sems, M10 x 20mm

With Attached Washer

2шт.

10

150860A1

COLLAR

3шт.

11

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

12

150496A1

MOUNTING CLIP

250 mm (10 in)

4шт.

13

KHR2713

ELECTRIC CABLE

Ground

1шт.

14

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

15

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

16

893-11006

LOCK WASHER,Ext Tooth, M6

2шт.

17

KHR2787

CLAMP

3шт.

18

150520A1

GROMMET

1шт.

19

159599A1

PRESSURE SWITCH

Auxiliary/Swing

2шт.

19

KHR10790

PRESSURE SWITCH

Use If Switch Has A Pigtail Connector

2шт.

20

167518A1

BOLT

1шт.

21

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

25

KHR2581

CLAMP

12шт.

26

KHJ1215

BOLT,Spcl

12шт.

35

KUR0067

GROMMET

2шт.

36

162150A1

CLAMP

2шт.

37

167518A1

BOLT

2шт.

38

150496A1

MOUNTING CLIP

250 mm (10 in)

2шт.

61

167518A1

BOLT

1шт.

62

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

63

KHR2797

ELECTRIC CABLE

1шт.

64

KHR2430

ELECTRIC CABLE

1шт.

65

KHR3265

CABLE ASSY.

1шт.

68

KUR0087

BRACKET

See Figure 04-03

1шт.

99

KMR0307

GROMMET

1шт.

100

152966A1

GROMMET

1шт.

103

158963A1

CLIP

2шт.

104

167518A1

BOLT

2шт.

107

152117A1

GROMMET

3шт.

109

KHR3852

ALARM

Replaces KHR3231

1шт.

110

165405A1

CLIP

1шт.

111

159602A1

BOLT,Sems, Hex, M6 x 16mm

3шт.

112

150496A1

MOUNTING CLIP

250 mm (10 in)

3шт.

124

KHR3731

HARNESS

1шт.

125

150496A1

MOUNTING CLIP

250 mm (10 in)

4шт.

126

KHR2583

CLAMP

2шт.

127

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

2шт.

130

KHR3732

HARNESS

1шт.

131

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

140

150067A1

MOUNTING CLIP

Not Illustrated

4шт.
