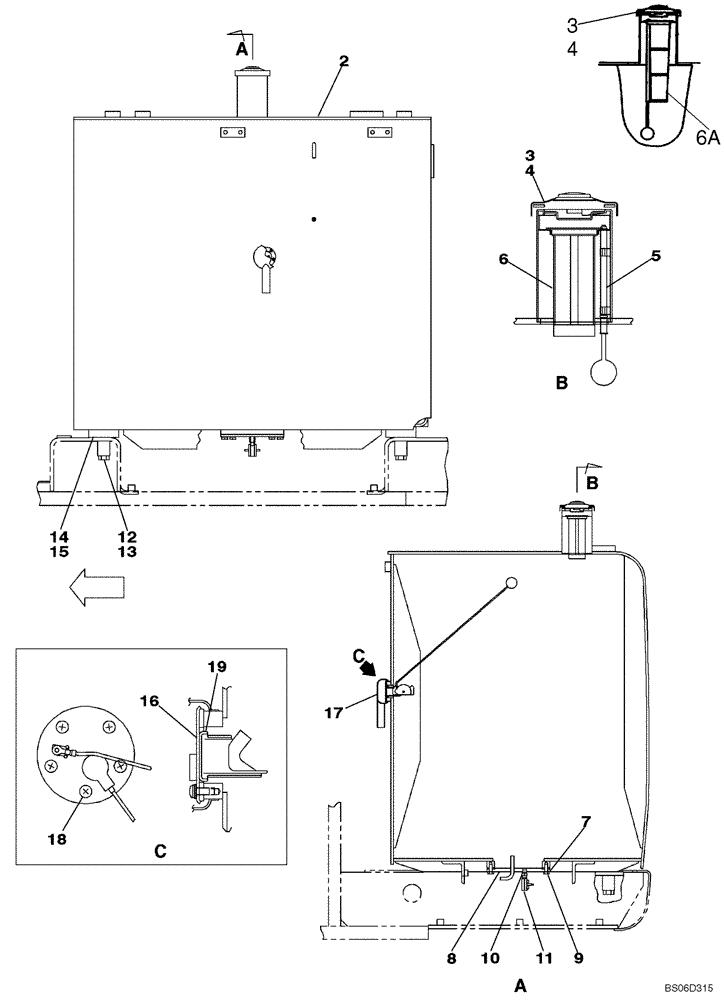

Запчасти Case CX800 (03-01) - FUEL TANK (03) - FUEL SYSTEM

KUH0118

FUEL TANK

Fuel, Incl. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

Tank, Fuel

1шт.

3

150492A1

LOCKABLE FUEL CAP

Incl. 4

1шт.

4

163804A1

GASKET

1шт.

5

KHH0330

GAUGE

If Used

1шт.

6

150146A1

FILTER

No Longer Available, Order KHH0500

1шт.

6a

KHH0500

FILTER

With Gauge

1шт.

7

151322A1

GASKET,3mm Thk

1шт.

8

151320A1

COVER

1шт.

9

166052A1

BOLT

With Attached Washer

8шт.

10

150847A1

HYD CONNECTOR

1шт.

11

158923A1

DRAIN VALVE

1шт.

12

102R020Y090R

BOLT

8шт.

13

KUJ0017

SPACER

8шт.

14

153208A1

SHIM

1шт.

15

153209A1

SHIM

1шт.

16

KHR2262

SENSOR

1шт.

17

159698A1

COVER

1шт.

18

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

5шт.

19

152591A1

GASKET,2mm Thk

1шт.
