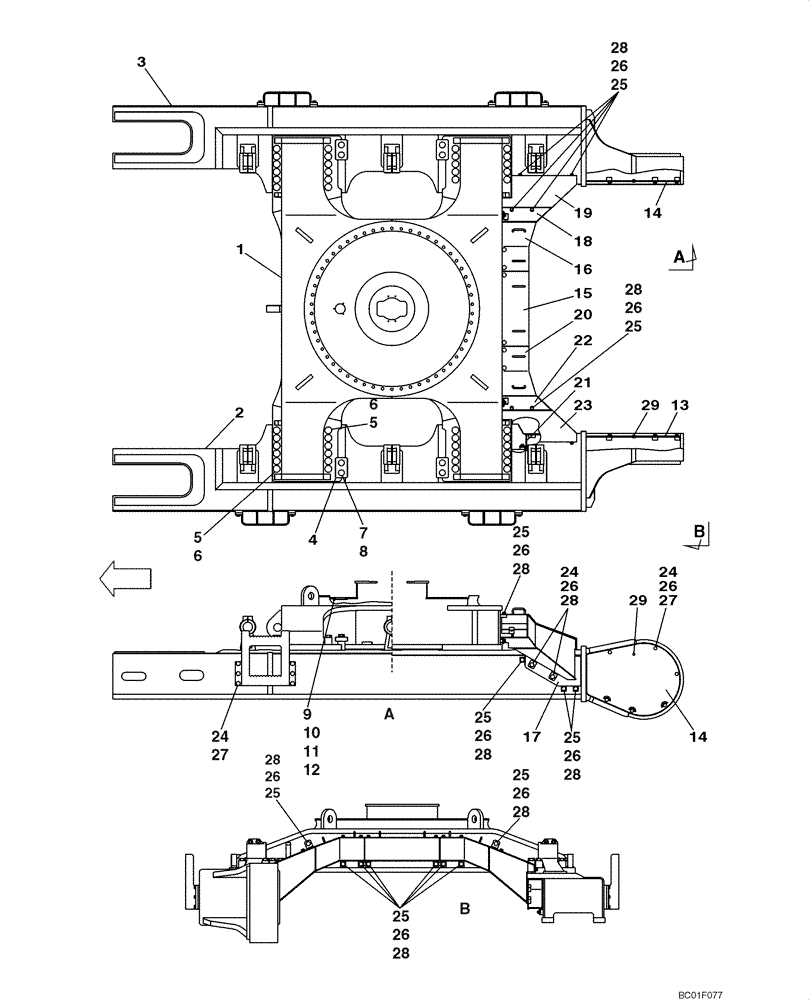

Запчасти Case CX800 (05-01) - UNDERCARRIAGE (11) - TRACKS/STEERING

1

KUA0119

CHASSIS

1шт.

2

KUA0120

CHASSIS

Left Hand Side

1шт.

3

KUA0122

CHASSIS

Right Hand Side

1шт.

4

KUA0123

PLATE

4шт.

5

KUA0124

SPACER

48шт.

6

102R036W180N

BOLT

48шт.

7

102R030Y190N

BOLT

8шт.

8

157545A1

WASHER

8шт.

9

150432A1

LID

Cover

1шт.

10

150436A1

PACKING

1шт.

11

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

3шт.

12

892-11008

LOCK WASHER,8mm ID

3шт.

13

KUA0127

COVER

Motor, Left Hand

1шт.

14

KUA0128

COVER

Motor, Right Hand

1шт.

15

KUA0148

COVER

1шт.

16

KUA0170

COVER

1шт.

17

KUA0171

COVER

1шт.

18

KUA0172

COVER

1шт.

19

KUA0173

COVER

1шт.

20

KUA0174

COVER

1шт.

21

KUA0175

COVER

1шт.

22

KUA0176

COVER

1шт.

23

KUA0177

COVER

1шт.

24

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

40шт.

25

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

28шт.

26

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

44шт.

27

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

36шт.

28

KHA0012

WASHER

32шт.

29

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.
