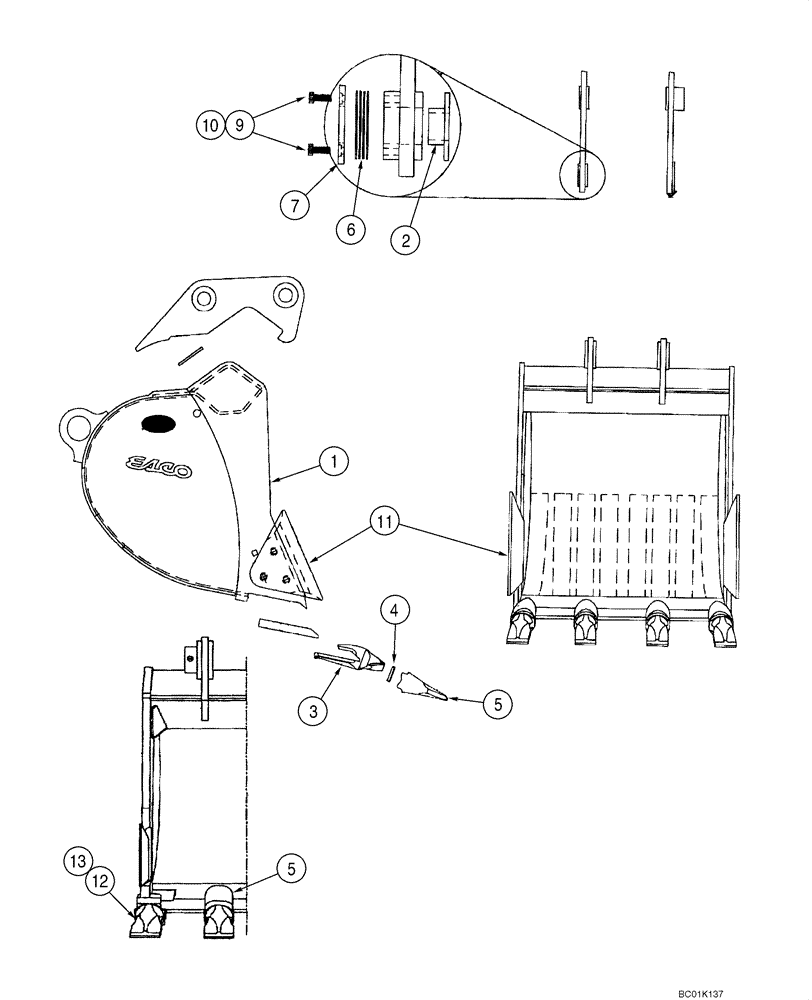

Запчасти Case CX800 (09-59) - BUCKETS - ESCO (09) - CHASSIS

Extra Heavy Duty Plate Bucket

1шт.

1

REF

INSTRUCTION

Bucket, 1,89 cu m (2,47 cu yd), With 4 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 2,49 cu m (3,26 cu yd), With 4 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 2,05 cu m (3,99 cu yd), With 5 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 3,39 cu m (4,43 cu yd), With 5 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 4,05 cu m (5,30 cu yd), With 6 Teeth

1шт.

2

438295A1

BUSHING

1шт.

3

438300A1

SHANK, BUCKET TOOTH

4-6шт.

4

408105A1

BUCKET TOOTH KEY

4-6шт.

5

438301A1

TOOTH

2-4шт.

6

438297A1

SHIM

7шт.

7

438296A1

PLATE

1шт.

8

378637A1

PIN

Not Illustrated

2шт.

9

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

4шт.

10

892-11020

LOCK WASHER,M20

4шт.

11

438299A1

SHROUD

Wear, Welded On

2шт.

12

438303A1

ADAPTER

Right Hand

1шт.

13

438304A1

ADAPTER

Left Hand

1шт.

438298A1

KIT

Incl. 2, 6 - 10

1шт.
