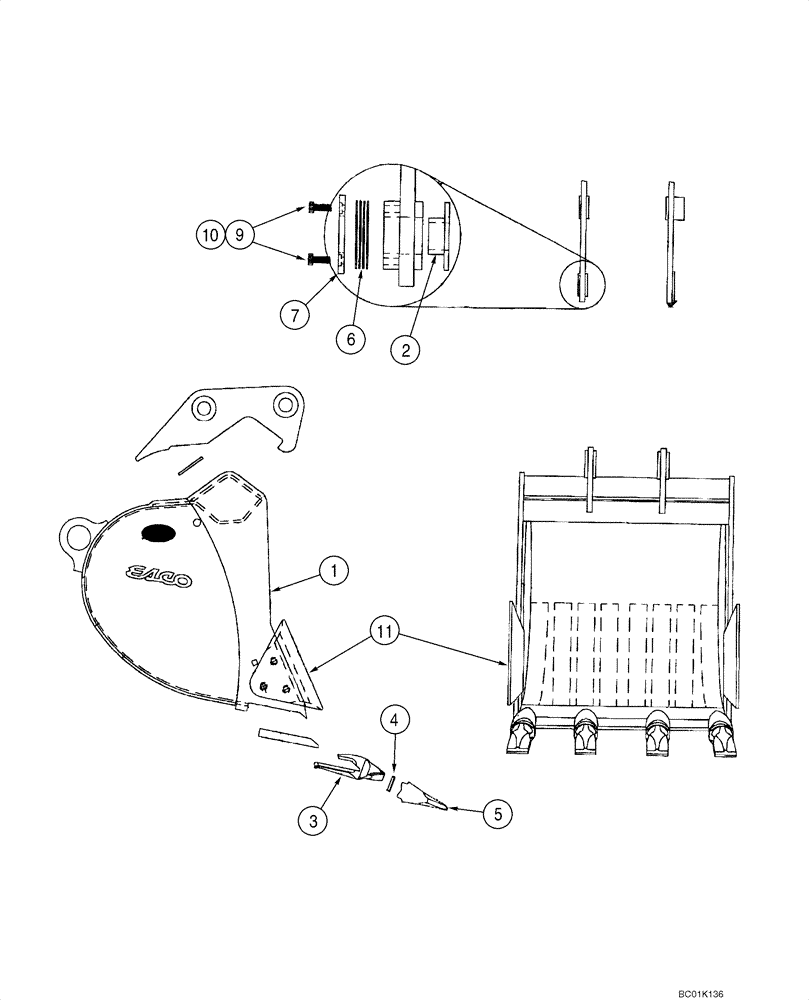

Запчасти Case CX800 (09-58) - BUCKETS - ESCO (09) - CHASSIS

Heavy Duty Plate Bucket

1шт.

1

REF

INSTRUCTION

Bucket, 1,93 cu m (2,53 cu yd), With 4 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 2,29 cu m (3,0 cu yd), With 4 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 2,66 cu m (3,48 cu yd), With 4 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 3,03 cu m (3,96 cu yd), With 5 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 3,4 cu m (4,45 cu yd), With 5 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 3,77 cu m (4,94 cu yd), With 5 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 4,14 cu m (5,42 cu yd), With 6 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 4,52 cu m (5,91 cu yd), With 6 Teeth

1шт.

2

438295A1

BUSHING

1шт.

3

438300A1

SHANK, BUCKET TOOTH

4-6шт.

4

408105A1

BUCKET TOOTH KEY

4-6шт.

5

438301A1

TOOTH

4-5шт.

6

438297A1

SHIM

7шт.

7

438296A1

PLATE

1шт.

8

378637A1

PIN

Not Illustrated

2шт.

9

862-20055

HEX SOC SCREW,M20 x 55mm, Cl 12.9

4шт.

10

892-11020

LOCK WASHER,M20

4шт.

11

438299A1

SHROUD

Wear, Welded On

2шт.

438298A1

KIT

Incl. 2, 6 - 10

1шт.
