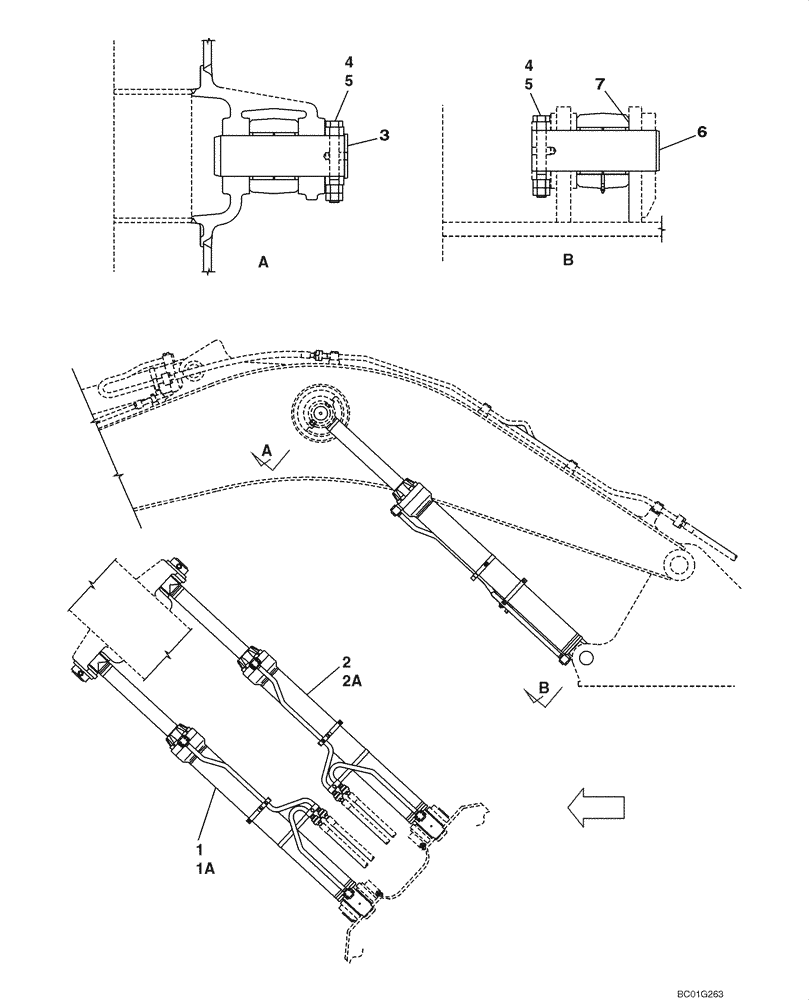

Запчасти Case CX800 (09-49) - BOOM CYLINDER - MOUNTING (09) - CHASSIS

1

KUV0140

HYDRAULIC CYLINDER

Left Hand, Models Without Load Hold, See Figure 08-78

1шт.

1a

KUV0186

HYDRAULIC CYLINDER

Left Hand, Models With Load Hold, See Figure 08-79

1шт.

2

KUV0139

HYDRAULIC CYLINDER

Right Hand, Models Without Load Hold, See Figure 08-77

1шт.

2a

KUV0186

HYDRAULIC CYLINDER

Right Hand, Models With Load Hold, See Figure 08-79

1шт.

3

KUV0026

PIN

2шт.

4

132R030W240N

BOLT,M30 x 2 x 240mm

4шт.

5

172R030VR

NUT

8шт.

6

KUV0027

PIN

2шт.

7

KHV0287

SHIM

4шт.
