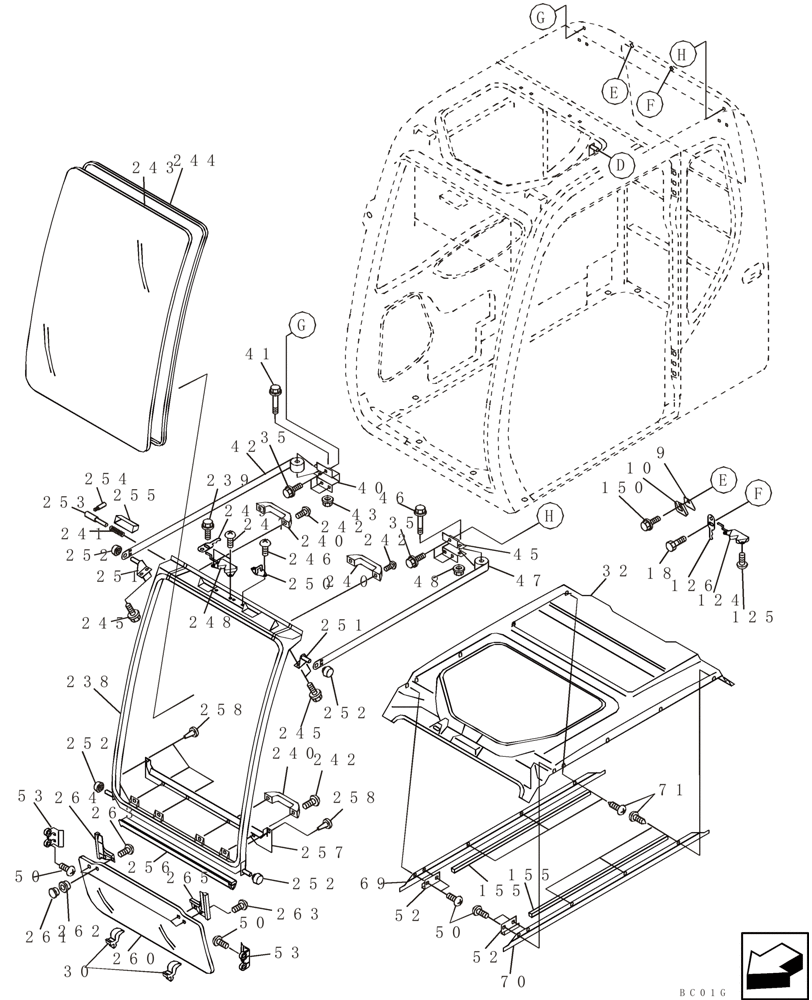

Запчасти Case CX800 (09-37) - CAB - WINDOW, FRONT (09) - CHASSIS

9

161353A1

SHIM

1шт.

10

161352A1

STOP

1шт.

18

159584A1

FLANGE BOLT,Shldr

1шт.

30

KHN2654

RUBBER BLOCK

2шт.

32

KHN3259

ROOF LINING

Replaces KHN2656

1шт.

35

KHN2896

BOLT,Spcl

6шт.

40

KHN2664

SUPPORT

1шт.

41

KHN2665

BOLT,Spcl

1шт.

42

KHN2666

SPRING

1шт.

43

161453A1

FLANGE NUT

1шт.

45

KHN2668

SUPPORT

1шт.

46

KHN2665

BOLT,Spcl

1шт.

47

KHN2669

SPRING

1шт.

48

161453A1

FLANGE NUT

1шт.

50

KHN2671

SCREW

M6 x 1 x 20

8шт.

52

KHN2673

STOP

2шт.

53

KHN2674

LOCKING TAB

2шт.

69

KHN2692

GUIDE

1шт.

70

KHN2693

GUIDE

1шт.

71

KHN2694

SCREW,Spcl

M5 x 16

6шт.

124

KHN2750

LOCK ASSY

1шт.

125

KHN2751

SCREW,Spcl

M8 x 16

2шт.

126

KHN2752

CATCH PLATE

1шт.

150

KHN2850

BOLT,Spcl

1шт.

155

KHN2881

SEAL PROTECTION

1шт.

KHN2616

WINDOW ASSY

Gray, Incl. 238 - 258; KHN3305 Cab

1шт.

KHN3622

WINDOW ASSY

Wheat, Incl. 238 - 258; KHN10110 Cab

1шт.

238

KHN2857

WINDOW FRAME

1шт.

239

159584A1

FLANGE BOLT,Shldr

1шт.

240

161410A1

HANDLE

3шт.

241

161436A1

SPRING

1шт.

242

161411A1

SCREW

6шт.

243

KHN2632

WINDSHIELD

1шт.

244

KHN2633

WEATHERSTRIP

1шт.

245

KHN2686

BOLT,Spcl

4шт.

246

KHN2702

SCREW,Spcl

M8 x 20

2шт.

247

KHN2751

SCREW,Spcl

M8 x 16

2шт.

248

KHN2830

LATCH ASSY.

1шт.

249

KHN2831

LEVER

1шт.

250

KHN2832

STRIKER PLATE

1шт.

251

KHN2833

SUPPORT

2шт.

252

KHN2834

ROLLER BEARING

4шт.

253

KHN2835

PIN

1шт.

254

KHN2836

LEVER

1шт.

255

KHN2837

GASKET

1шт.

256

KHN2838

SEAL

1шт.

257

KHN2839

DOOR COVER

Gray, KHN3305 Cab

1шт.

257

KHN3623

PADDING

Wheat, KHN10110 Cab

1шт.

258

KHN2840

FASTENER

4шт.

259

KHN3024

SHIELD

Not Illustrated

2шт.

KHN2617

WINDOW ASSY

Incl. 260 - 265

1шт.

260

KHN2634

CAB GLASS

1шт.

261

KHN2761

NUT

4шт.

262

KHN2762

GROMMET

4шт.

263

KHN2764

SCREW,Spcl

4шт.

264

KHN2841

SEAL

1шт.

265

KHN2842

SEAL

1шт.
