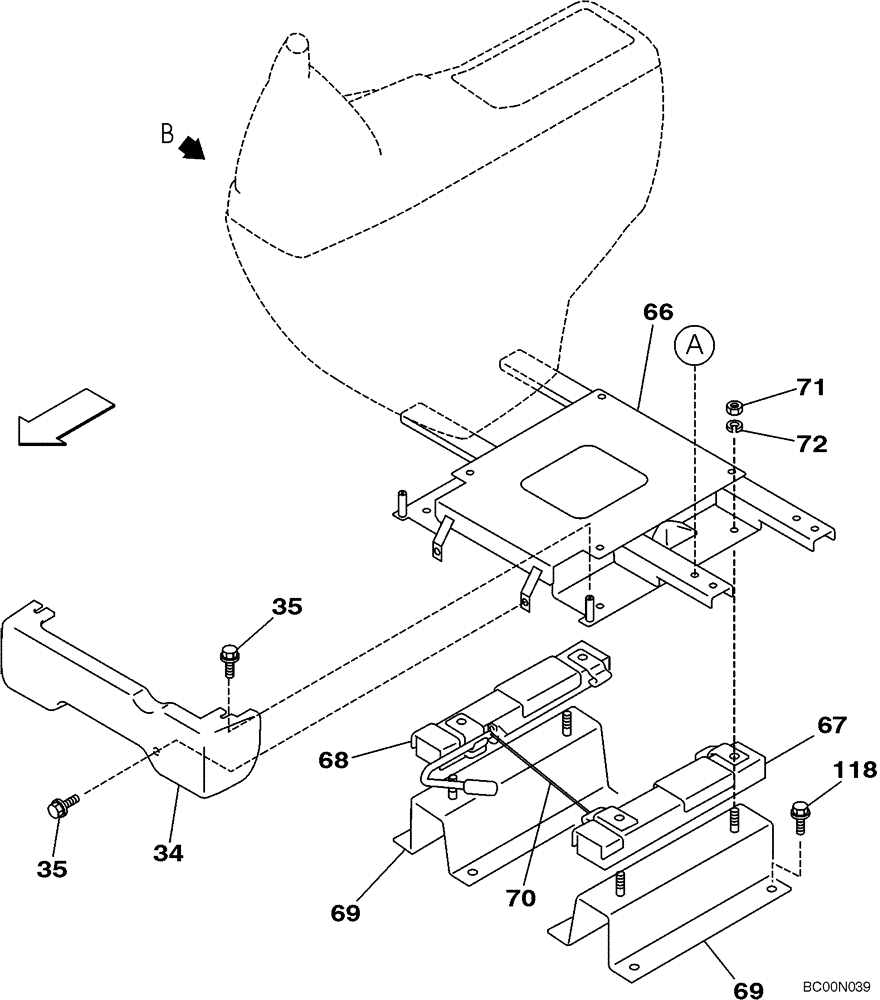

Запчасти Case CX800 (09-25) - SEAT, GREY - MOUNTING (09) - CHASSIS

34

KHN2012

COVER

Front

1шт.

35

KHN2132

BOLT,Hex Flg Hd, M6 x 16

4шт.

66

KHN2823

HOLDER

1шт.

67

KHN2473

SLIDE GUIDE

1шт.

68

KHN2474

SLIDE GUIDE

1шт.

69

KHN2475

CENTRAL RAIL

2шт.

70

KHN2476

CENTRAL RAIL

1шт.

71

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

72

892-11010

LOCK WASHER,M10

8шт.

118

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

8шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

8шт.
