(09-24) - SEAT, GREY

Запчасти Case CX800 (09-24) - SEAT, GREY (09) - CHASSIS

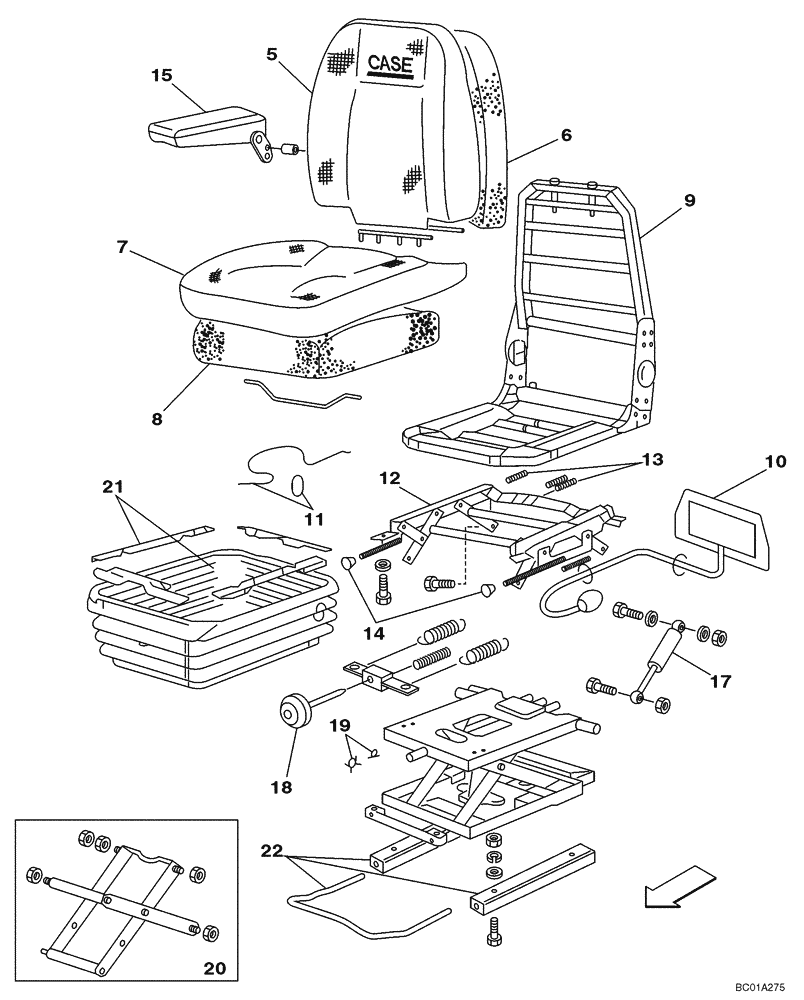

Схема запчастей Case CX800 - (09-24) - SEAT, GREY (09) - CHASSIS
12
21
17
22
20
8
7
6
11
10
9
14
13
18
5
15
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

300642A1

SEAT ASSY.

Incl. 1 - 22, Also Includes Parts On Figure 09-23, REF 2, 24 - 27

1шт.

307040A1

SEAT ASSY.

Incl. 5 - 11

1шт.

5

307042A1

DRIVER'S SEAT COVER

Backrest

1шт.

6

9969293

SEAT CUSHION

Replaces H4841461

1шт.

7

F2547002

SEAT COVER

Seat Cushion

1шт.

8

9969295

SEAT CUSHION

Replaces J4841462

1шт.

9

307043A1

FRAMEWORK

1шт.

10

307044A1

KIT

Backrest Adjustment

1шт.

11

71456224

CABLE

Recliner Control; Replaces D2447088

1шт.

307045A1

KIT

Height Riser, Incl. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Frame

1шт.

13

307046A1

KIT

Height Riser Springs

1шт.

14

307047A1

SET OF PARTS

Height Adjustment

1шт.

15

307048A1

ARMREST ASSY.

Right Hand And Left Hand

1шт.

307049A1

SUSPENSION

Suspension Assy, Incl. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

Suspension

1шт.

17

L4143253

SET OF PARTS

Shock Absorber

1шт.

18

B2447086

SET OF PARTS

Weight Adjustment

1шт.

19

307050A1

KIT

Stop

1шт.

20

307051A1

BEARING ASSY

Height Adjustment

1шт.

21

307052A1

KIT

Boot

1шт.

22

307053A1

KIT

Seat Slide Rails

1шт.
