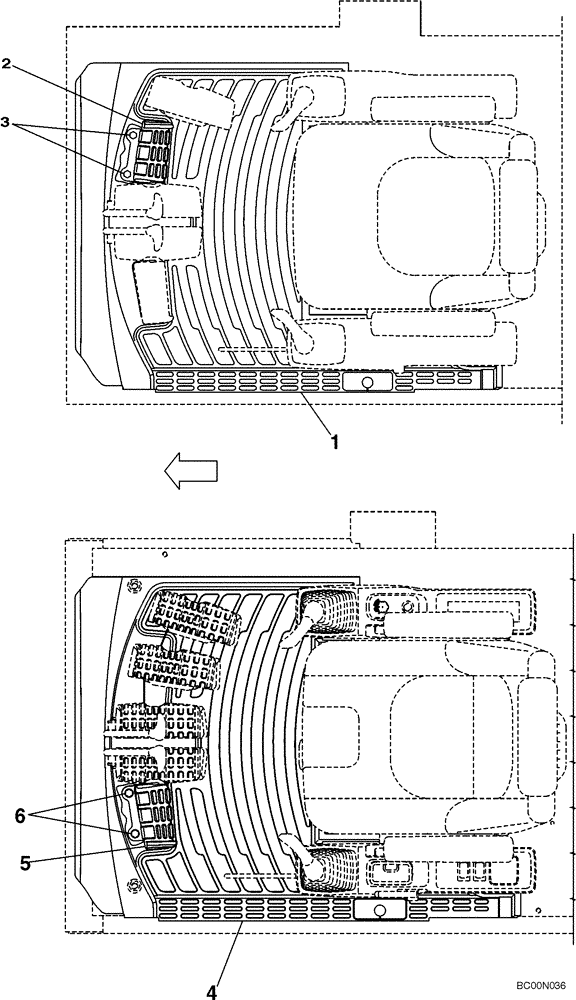

Запчасти Case CX800 (09-20) - MAT, FLOOR - OPERATORS COMPARTMENT (09) - CHASSIS

Models Without Auxiliary Hydraulics

1шт.

1

KHJ1614

FLOOR MAT

1шт.

2

KHJ1638

FOOT REST

1шт.

3

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

Models With Auxiliary Hydraulics

1шт.

4

KHJ1910

FLOOR MAT

1шт.

5

KHJ1636

FOOT REST

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.
