(09-19) - AUXILIARY HYDRAULIC CONTROL - TRAVEL CONTROL, SINGLE PEDAL

Запчасти Case CX800 (09-19) - AUXILIARY HYDRAULIC CONTROL - TRAVEL CONTROL, SINGLE PEDAL (09) - CHASSIS

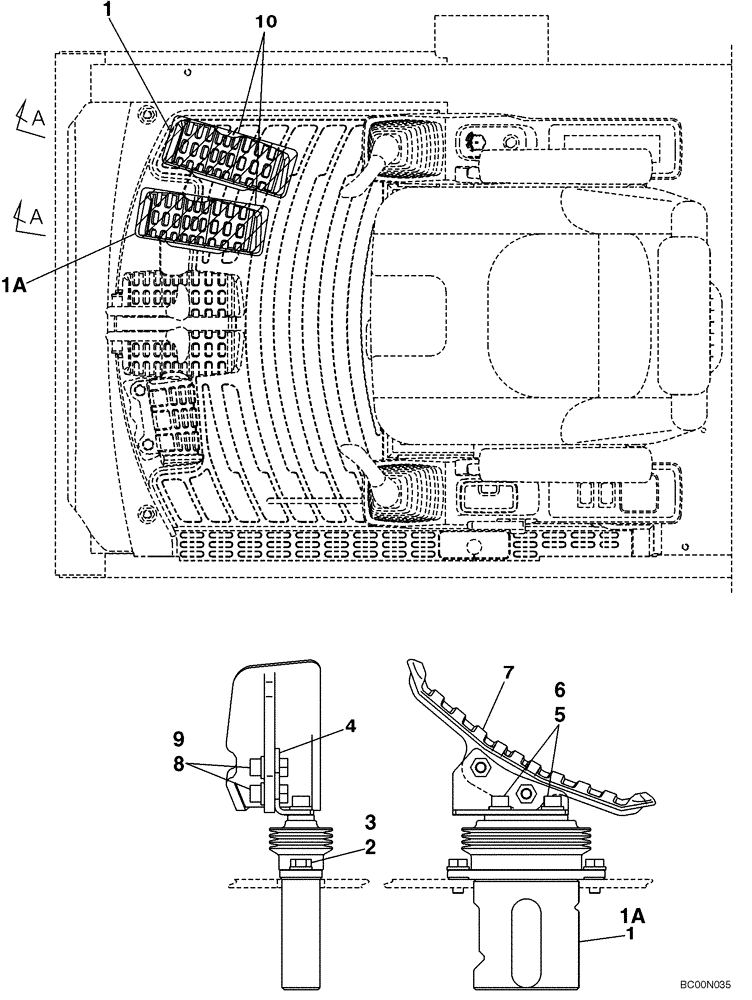

Схема запчастей Case CX800 - (09-19) - AUXILIARY HYDRAULIC CONTROL - TRAVEL CONTROL, SINGLE PEDAL (09) - CHASSIS
2
1a
4
3
9
1a
1
5
1
8
7
10
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Models With Auxiliary Hydraulics

1шт.

1

KRJ5864

CONTROL BLOCK

Single Pedal Travel Control, See Figure 08-74

1шт.

1a

KRJ5864

CONTROL BLOCK

Auxiliary Control, See Figure 08-74

1шт.

2

150552A1

BOLT,High Strength, Hex, M10 x 25mm

M10 x 25; 10,9

4шт.

3

150604A1

WASHER

4шт.

4

KHJ1643

BRACKET

2шт.

5

165404A1

BOLT,Hex Skt, M10 x 20mm

4шт.

6

150604A1

WASHER

4шт.

7

KHJ1629

PEDAL

2шт.

8

KHJ1820

BOLT,Hex Skt Hd

4шт.

9

150604A1

WASHER

4шт.

10

163782A1

SKIRT COVER

2шт.
