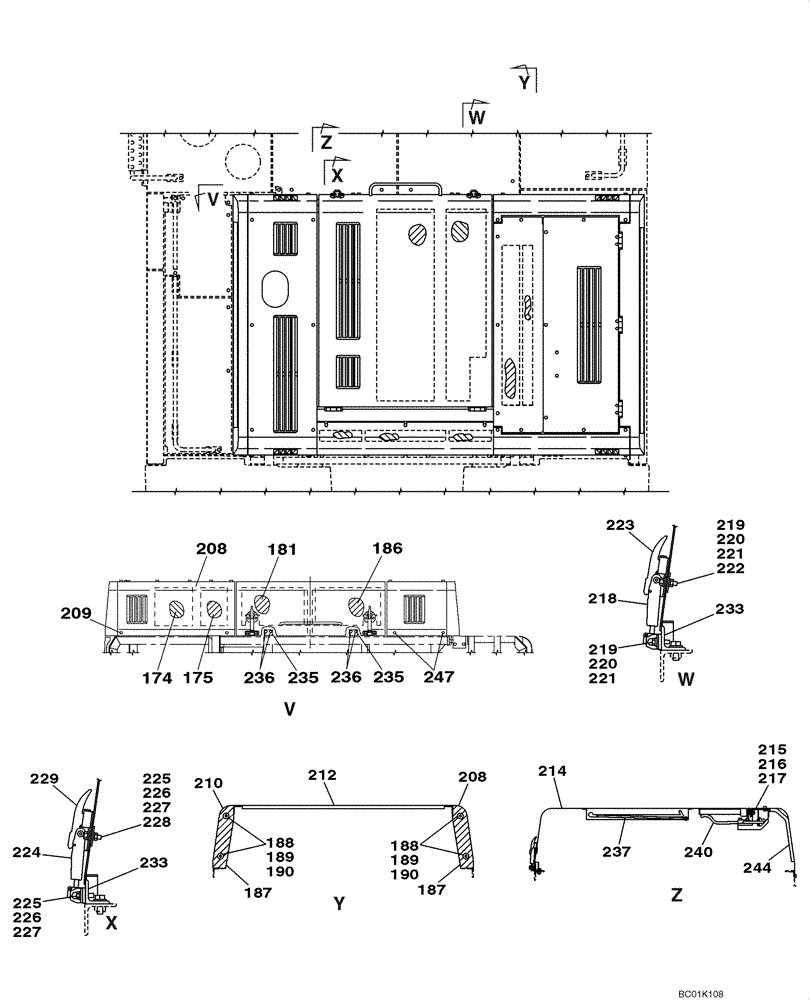

Запчасти Case CX800 (09-16) - HOOD, ENGINE - INSULATION (09) - CHASSIS

Upper Structure

1шт.

Detail Of Frame

1шт.

174

KUN0344

INSULATOR

1шт.

175

KUN0345

INSULATOR

1шт.

181

KUN0365

INSULATOR

1шт.

186

KUN0377

INSULATOR

1шт.

187

KUN0369

SEAL

Cushion

2шт.

188

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

189

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

4шт.

190

KHH0358

RETAINER

4шт.

208

KUN0311

HOOD ASSY.

See Figure 09-14

1шт.

209

166352A1

BOLT

With Attached Washer

4шт.

210

KUN0324

HOOD ASSY.

See Figure 09-14

1шт.

212

KUN0314

HOOD ASSY.

See Figure 09-14

1шт.

214

KUN0392

HOOD ASSY.

See Figure 09-14

1шт.

215

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

216

829-1412

NUT,M12, Cl 10.9

4шт.

217

150811A1

WASHER

M12

4шт.

218

151356A1

LOCK ASSY

1шт.

219

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

220

892-11008

LOCK WASHER,8mm ID

4шт.

221

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

222

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

223

150785A1

STOP LOCK

1шт.

224

151361A1

HANDLE

1шт.

225

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

226

892-11008

LOCK WASHER,8mm ID

4шт.

227

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

228

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

229

150785A1

STOP LOCK

1шт.

233

KUN0323

BRACKET

2шт.

235

KUN0321

BRACKET

2шт.

236

166352A1

BOLT

With Attached Washer

4шт.

237

KUN0391

STAY

1шт.

240

KUN0397

TORSION SPRING

1шт.

244

KUN0400

HOOD ASSY.

See Figure 09-14

1шт.

247

166352A1

BOLT

With Attached Washer

2шт.
