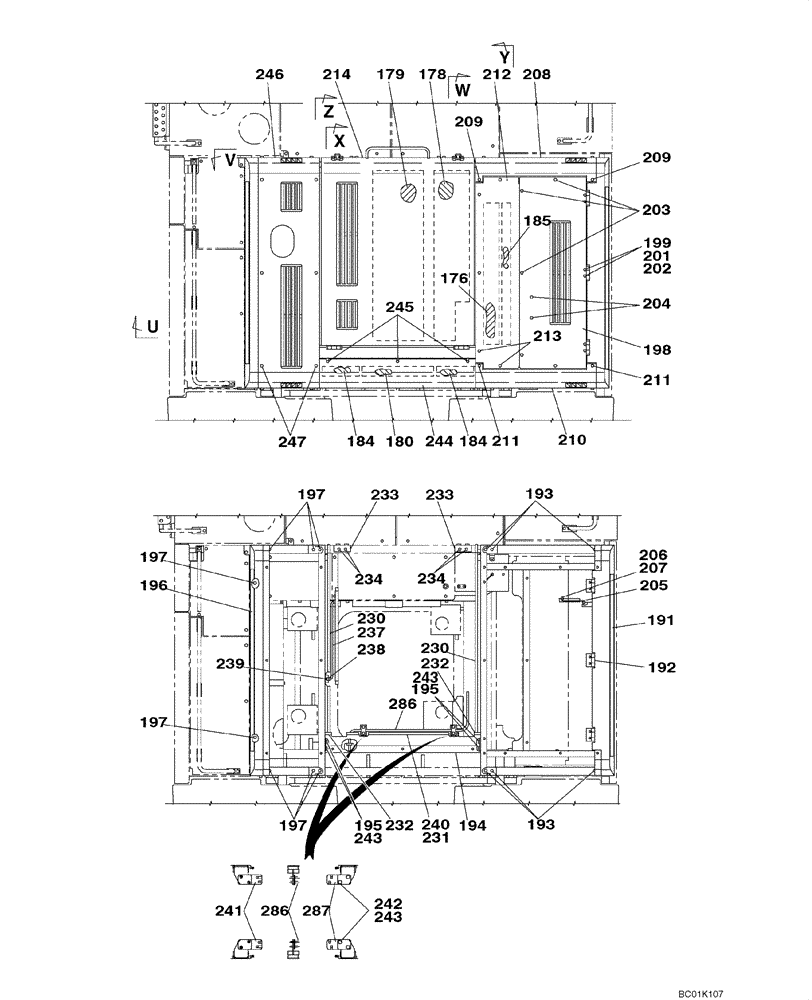

Запчасти Case CX800 (09-14) - HOOD, ENGINE - INSULATION (09) - CHASSIS

Upper Structure

1шт.

Detail Of Frame

1шт.

176

KUN0360

INSULATOR

1шт.

178

KUN0362

INSULATOR

1шт.

179

KUN0363

INSULATOR

1шт.

180

KUN0364

INSULATOR

1шт.

184

KUN0375

INSULATOR

2шт.

185

KUN0376

INSULATOR

1шт.

186

150811A1

WASHER

M12

4шт.

191

KUN0390

HOOD ASSY.

See Figures 09-11, 09-13

1шт.

192

151104A1

HINGE

3шт.

193

166352A1

BOLT

With Attached Washer

6шт.

194

KUN0393

HOOD ASSY.

1шт.

195

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

196

KUN0394

HOOD ASSY.

1шт.

197

166352A1

BOLT

With Attached Washer

8шт.

198

KUN0309

HOOD ASSY.

1шт.

199

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

201

150409A1

WASHER

10,5 x 21 x 3,2 mm

6шт.

202

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

203

166352A1

BOLT

With Attached Washer

7шт.

205

159119A1

STAY

1шт.

206

153181A1

COTTER PIN

2шт.

207

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

208

KUN0311

HOOD ASSY.

1шт.

209

166352A1

BOLT

With Attached Washer

4шт.

210

KUN0324

HOOD ASSY.

1шт.

211

166352A1

BOLT

With Attached Washer

4шт.

212

KUN0314

HOOD ASSY.

1шт.

213

166352A1

BOLT

With Attached Washer

5шт.

214

KUN0392

HOOD ASSY.

1шт.

230

KUN0368

GASKET

2шт.

231

KUN0371

GASKET

1шт.

232

KUN0372

GASKET

2шт.

233

KUN0323

BRACKET

2шт.

234

166352A1

BOLT

With Attached Washer

4шт.

237

KUN0391

STAY

1шт.

238

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

239

160762A1

COTTER PIN

1шт.

240

KUN0397

TORSION SPRING

1шт.

241

KUN0395

BRACKET

2шт.

242

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

243

150811A1

WASHER

M12

8шт.

244

KUN0400

HOOD ASSY.

1шт.

245

166352A1

BOLT

With Attached Washer

4шт.

246

KUN0313

HOOD ASSY.

See Figure 09-13

1шт.

247

166352A1

BOLT

With Attached Washer

10шт.

286

KUN0398

TORSION SPRING

1шт.

287

KUN0396

BRACKET

2шт.
