Запчасти Case CX800 (09-13) - FRAMES, COVERS - INSULATION (09) - CHASSIS

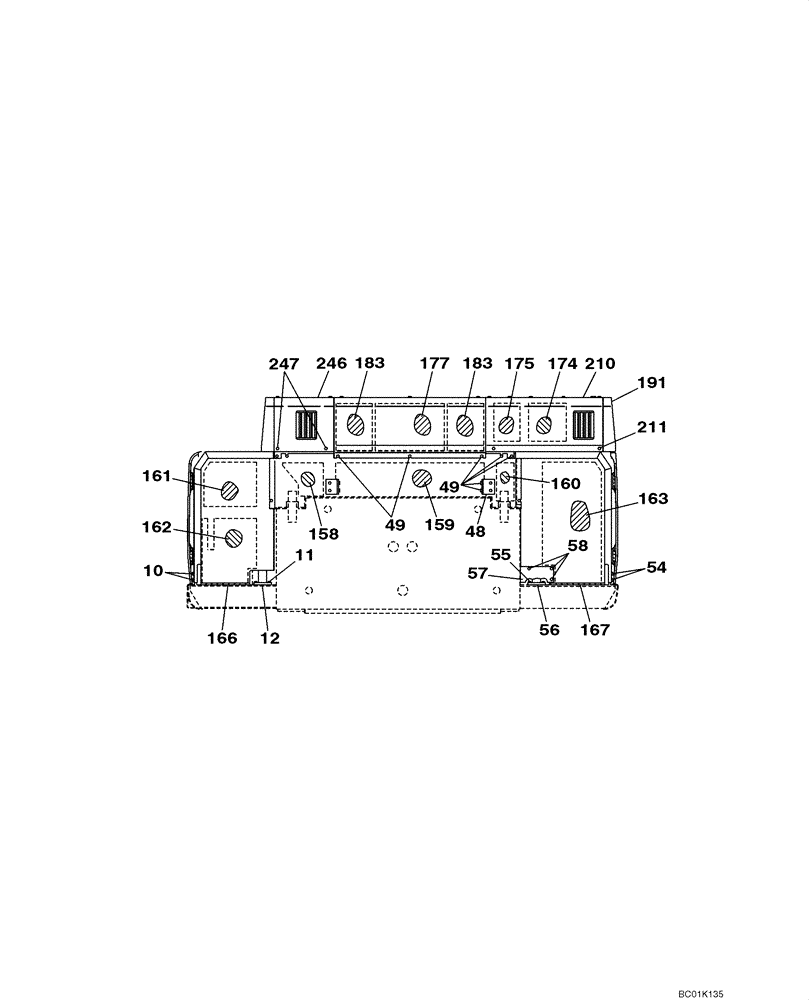

Схема запчастей Case CX800 - (09-13) - FRAMES, COVERS - INSULATION (09) - CHASSIS
12
160
191
177
183
175
54
161
159
11
183
166
10
167
49
163
49
174
210
48
56
247
158
57
55
162
246
58
211
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Upper Structure

1шт.

Rear View

1шт.

10

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

11

166352A1

BOLT

With Attached Washer

2шт.

12

KUN0272

PLATE

2шт.

49

166352A1

BOLT

With Attached Washer

14шт.

54

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

55

166352A1

BOLT

With Attached Washer

2шт.

56

KUN0272

PLATE

1шт.

57

KUN0356

COVER

1шт.

58

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

158

KUN0337

INSULATOR

1шт.

159

KUN0338

INSULATOR

1шт.

160

KUN0339

INSULATOR

1шт.

161

KUN0340

INSULATOR

1шт.

162

KUN0341

INSULATOR

1шт.

163

KUN0342

INSULATOR

1шт.

166

KUN0347

SEAL

Cushion

1шт.

167

KUN0348

SEAL

Cushion

1шт.

174

KUN0344

INSULATOR

1шт.

175

KUN0345

INSULATOR

1шт.

177

KUN0361

INSULATOR

1шт.

183

KUN0374

INSULATOR

2шт.

191

KUN0390

HOOD ASSY.

See Figure 09-11, 09-14

1шт.

210

KUN0324

HOOD ASSY.

1шт.

211

166352A1

BOLT

With Attached Washer

4шт.

246

KUN0313

HOOD ASSY.

See Figure 09-14

1шт.

247

166352A1

BOLT

With Attached Washer

10шт.
