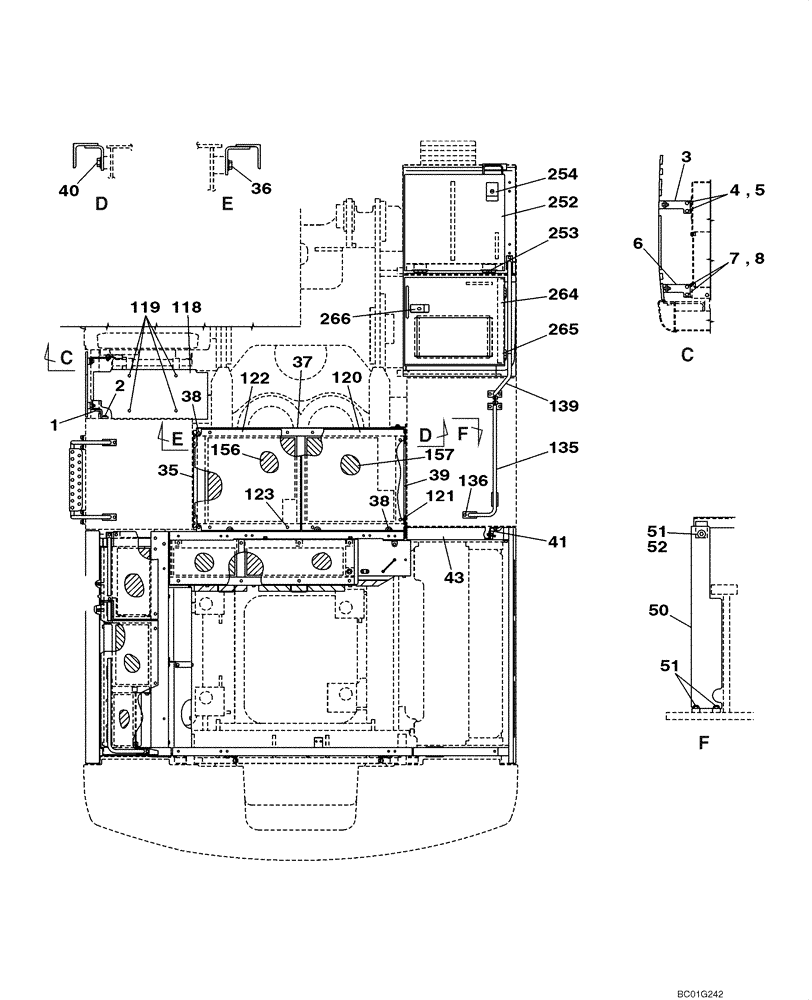

Запчасти Case CX800 (09-09) - FRAMES, COVERS (09) - CHASSIS

Upper Structure

1шт.

Front Half

1шт.

1

KUN0280

FRAME

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

3

KUN0285

BRACKET

1шт.

4

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

5

150811A1

WASHER

M12

2шт.

6

KUN0349

BRACKET

1шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

8

150811A1

WASHER

M12

2шт.

35

KUN0279

FRAME

1шт.

36

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

37

KUN0276

FRAME

1шт.

38

166352A1

BOLT

With Attached Washer

5шт.

39

KUN0284

FRAME

1шт.

40

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

41

KUN0290

FRAME

1шт.

43

KUN0283

FRAME

1шт.

50

KUN0355

COVER

1шт.

51

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

52

KUN0254

WASHER

1шт.

118

KUN0317

COVER

1шт.

119

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

120

KUN0315

COVER

1шт.

121

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

122

KUN0316

COVER

1шт.

123

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

135

KUN0264

GRAB RAIL

1шт.

136

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

139

KUN0263

GRAB RAIL

1шт.

156

KUN0335

INSULATOR

1шт.

157

KUN0336

INSULATOR

1шт.

252

KUN0238

INSPECTION DOOR

Incl. 253, 254

1шт.

253

151104A1

HINGE

2шт.

254

150939A1

LOCK

1шт.

264

KUN0239

INSPECTION DOOR

Incl. 265, 266

1шт.

265

151104A1

HINGE

2шт.

266

150938A1

LOCK

1шт.
