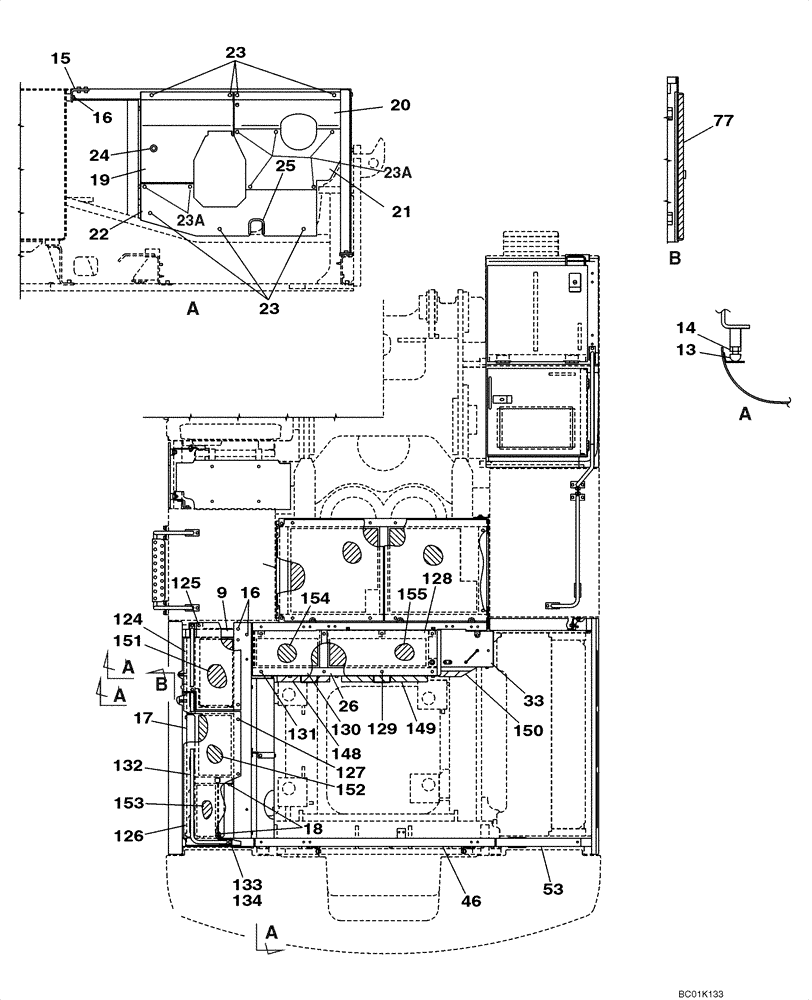

Запчасти Case CX800 (09-08) - FRAMES, COVERS (09) - CHASSIS

Upper Structure

1шт.

Rear Half

1шт.

9

KUN0277

FRAME

1шт.

13

159091A1

STOP

2шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

15

KUN0289

FRAME

1шт.

16

166352A1

BOLT

With Attached Washer

4шт.

17

KUN0278

FRAME

1шт.

18

166352A1

BOLT

With Attached Washer

4шт.

19

KUN0286

COVER

1шт.

20

KUN0304

COVER

1шт.

21

KUN0287

COVER

1шт.

22

KUN0288

COVER

1шт.

23

166352A1

BOLT

With Attached Washer

7шт.

23a

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

24

159656A1

GROMMET

1шт.

25

KUN0367

GASKET

1шт.

26

KUN0300

FRAME

1шт.

33

KUN0301

COVER

Center

1шт.

46

KUN0402

FRAME

1шт.

53

KUN0282

FRAME

1шт.

77

KUN0105

SEAL, RUBBER

RUBBER SEAL

1шт.

124

KUN0318

COVER

1шт.

125

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

126

KUN0319

COVER

1шт.

127

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

128

KUN0357

COVER

1шт.

129

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

130

KUN0358

COVER

1шт.

131

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

132

KUN0161

GRAB RAIL

1шт.

133

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

10шт.

134

150811A1

WASHER

M12

10шт.

148

KUN0327

INSULATOR

1шт.

149

KUN0328

INSULATOR

1шт.

150

KUN0329

INSULATOR

1шт.

151

KUN0330

INSULATOR

1шт.

152

KUN0331

INSULATOR

1шт.

153

KUN0332

INSULATOR

1шт.

154

KUN0333

INSULATOR

1шт.

155

KUN0334

INSULATOR

1шт.
