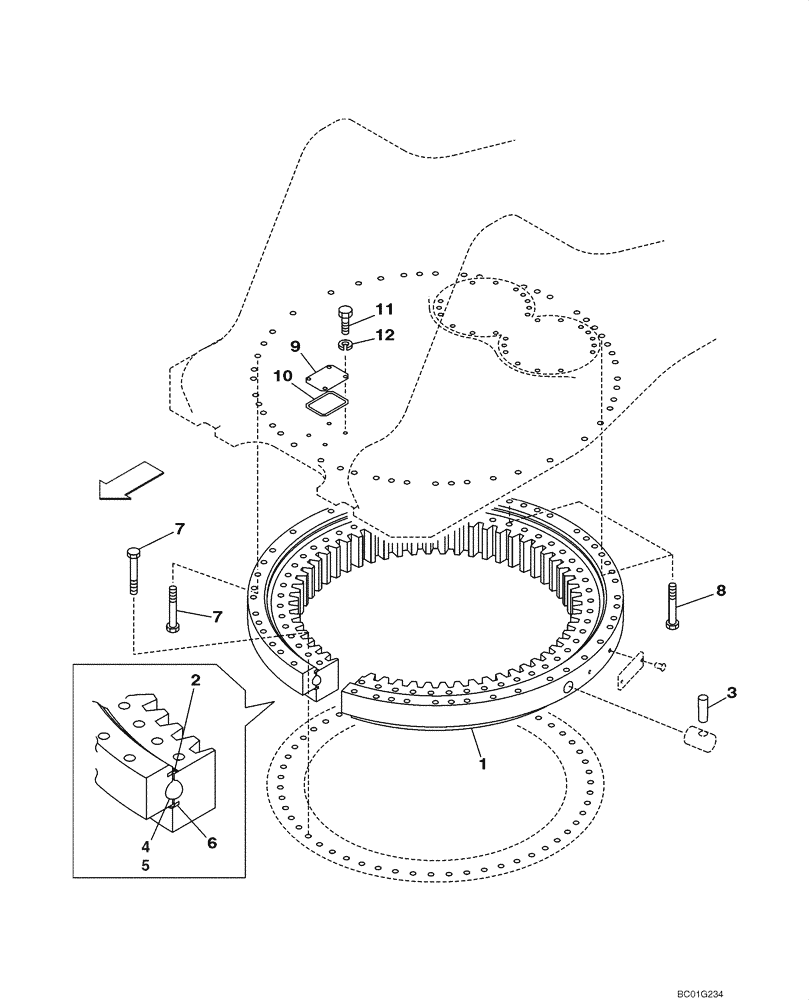

Запчасти Case CX800 (09-01) - TURNTABLE BEARING (09) - CHASSIS

1

KUB10010

RING GEAR

Incl. 2 - 6; Replaces KUB0002

1шт.

2

KUB0036

SEALING RING

SEALRING Incl. 3

1шт.

3

KUB0032

PIN

1шт.

4

NSS

NOT SOLD SEPARAT

Ball

65шт.

5

NSS

NOT SOLD SEPARAT

Spacer

65шт.

6

KUB0059

SEALING RING

SEALRING

1шт.

7

102R030W200N

BOLT

102шт.

8

KUB0038

BOLT,Spcl

2шт.

9

KUB0026

COVER

1шт.

10

KUB0027

GASKET

1шт.

11

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

12

892-11012

LOCK WASHER,M12

4шт.
