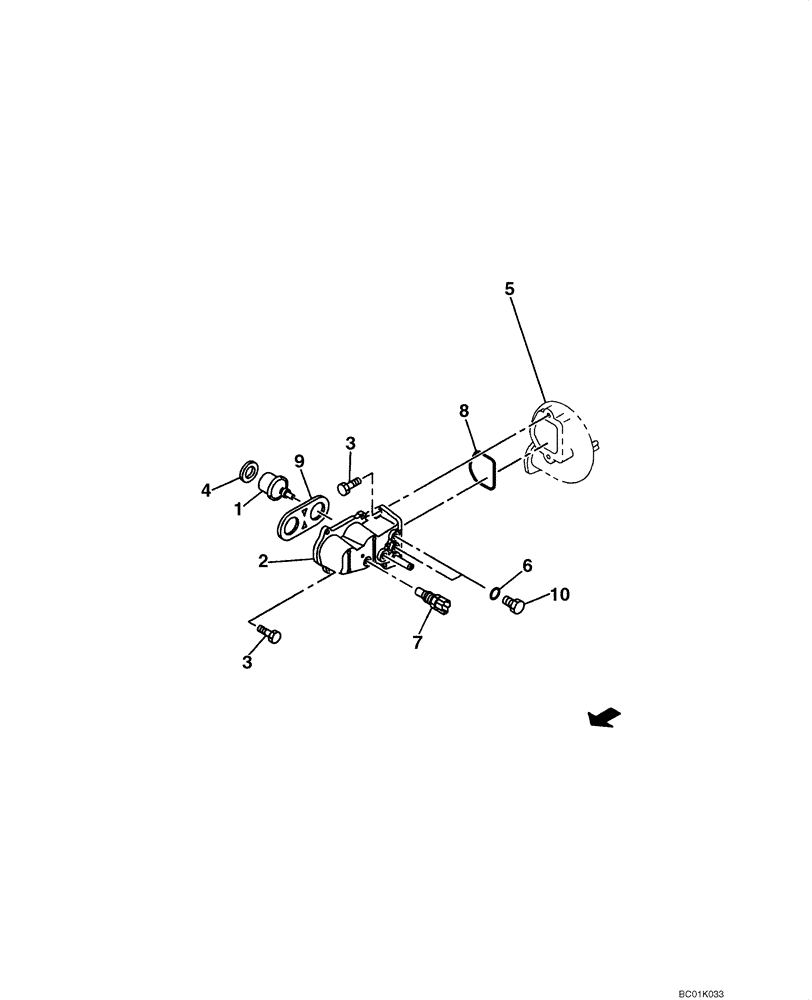

Запчасти Case CX800 (02-08) - WATER CIRCUIT - THERMOSTAT (02) - ENGINE

Isuzu 6WG1TC Emissions Certified Engine

1шт.

1

426196A1

THERMOSTAT

2шт.

2

426197A1

HOUSING

1шт.

3

419915A1

BOLT

5шт.

4

426198A1

O-RING

2шт.

5

REF

INSTRUCTION

Pump, Water, See Figure 02-07

1шт.

6

426200A1

GASKET

2шт.

7

288817A1

SENSOR

See Figure 04-16

1шт.

8

438021A1

GASKET

1шт.

9

426204A1

GASKET

1шт.

10

355157A1

PLUG

2шт.

11

426205A1

PLUG

Not Illustrated

1шт.
