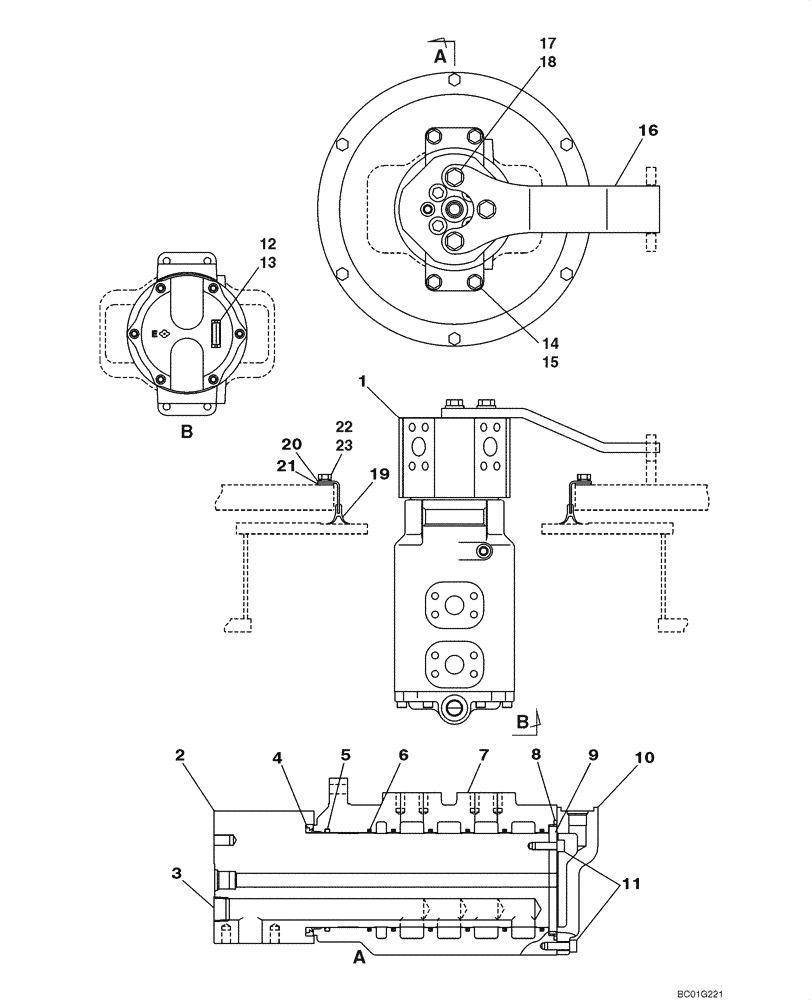

Запчасти Case CX800 (08-65) - HYDRAULICS - JOINT, SWIVEL CENTER, P.I.N. DAC0780101 - DAC0780111 (08) - HYDRAULICS

1

KUA0164

JOINT TURNING

Incl. 2 - 13

1шт.

2

KUA0165

HOUSING

Incl. 3

1шт.

3

KHJ1274

PLUG

4шт.

4

KUA0095

SHAFT SEAL

1шт.

5

154776A1

O-RING

1шт.

6

KUA0096

PACKAGE, RINGS

6шт.

7

KUA0092

ROTOR

1шт.

8

154821A1

O-RING

1шт.

9

KUA0093

WASHER, THRUST

1шт.

10

KUA0094

COVER

4шт.

11

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

10шт.

12

NSS

NOT SOLD SEPARAT

Plate

1шт.

13

301-1413

DRIVE SCREW,Drive, #2 x 3/16"

2шт.

14

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

15

150811A1

WASHER

M12

4шт.

16

KUA0163

LOCKING DEVICE

Lock

1шт.

17

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

3шт.

18

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

3шт.

19

KUA0098

SEALING RING

SEALRING

1шт.

20

KUA0099

SEAL RETAINER

1шт.

21

KUA0100

PACKING

1шт.

22

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

6шт.

23

161498A1

SEALING WASHER

6шт.
