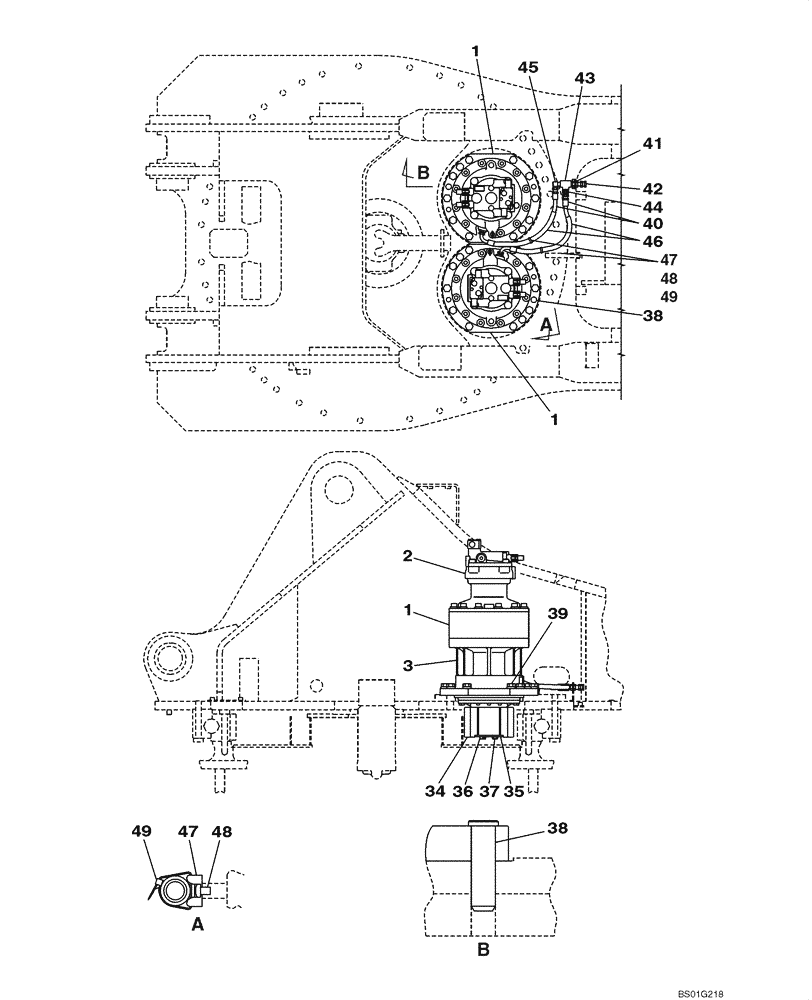

Запчасти Case CX800 (08-62) - REVOLVING EQUIPMENT (08) - HYDRAULICS

1

KUC0019

MOTO-REDUCTION GEAR

Swing, Incl. 2, 3

2шт.

2

KUC0017

MOTOR, HYDRAULIC

See Figure 08-63

1шт.

3

KUP0048

REDUCER

See Figure 08-64

1шт.

34

KUC0013

PINION

Pinion

2шт.

35

150285A1

PLATE, LOCKING

2шт.

36

167069A1

WASHER

2шт.

37

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

38

150317A1

HEADED PIN,24mm OD x 90mm L

2шт.

39

166477A1

BOLT,Sems, M24 x 90mm

With Attached Washer

24шт.

40

KHJ1568

HYDRAULIC HOSE,12.70 mm ID x 620.00 mm

2шт.

41

KHJ0512

HYD CONNECTOR

1шт.

42

158841A1

PLUG

1шт.

43

157759A1

TEE

1шт.

44

150073A1

ADAPTER

1шт.

45

150602A1

ADAPTER

1шт.

46

150476A1

PLASTIC-RUBBER TUBE,19.3 mm ID, 23.8 mm OD, 400 mm Length

2шт.

47

150860A1

COLLAR

2шт.

48

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

49

150067A1

MOUNTING CLIP

150 mm (6 in)

2шт.
