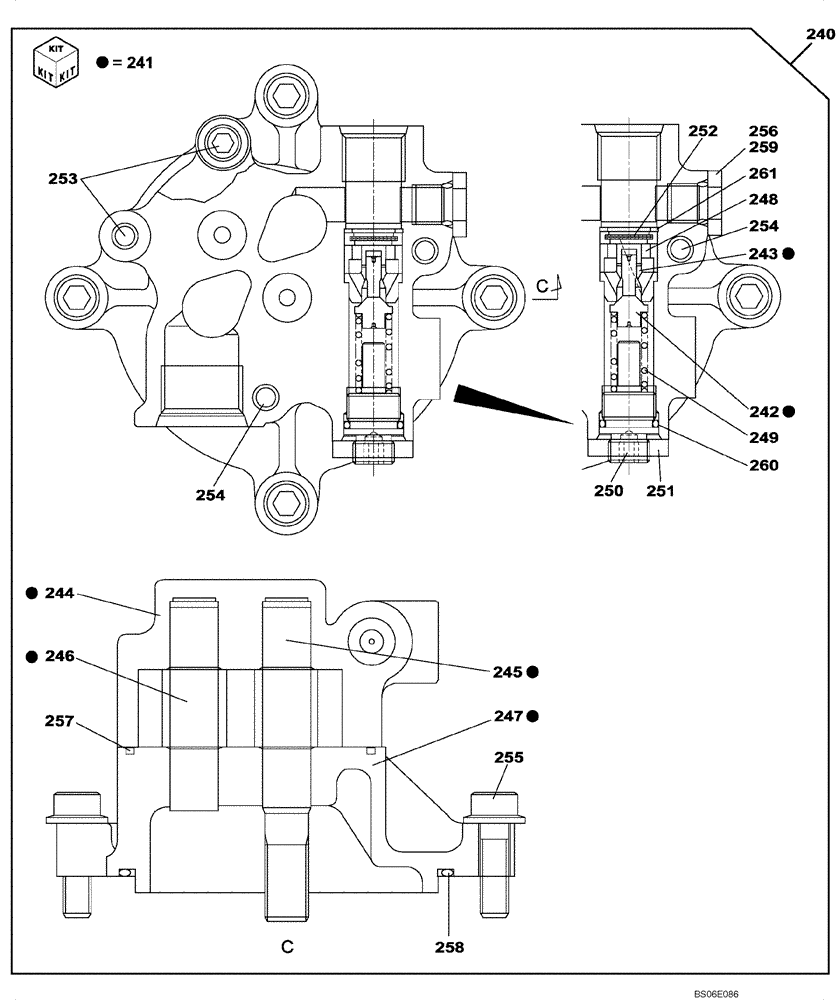

Запчасти Case CX800 (08-61A) - PUMP ASSY, HYDRAULIC - GEAR PUMP ASSY (08) - HYDRAULICS

KUJ0309

PUMP, HYDRAULIC

Includes All Parts On Figures 08-56 - 08-61A

1шт.

87341996

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

87341997

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

240

LJ01287

HYDRAULIC PUMP

Incl. 241 - 261

1шт.

241

LC00260

GEAR

Incl. 242 - 247

1шт.

242

NSS

NOT SOLD SEPARAT

Poppet

1шт.

243

NSS

NOT SOLD SEPARAT

Seat

1шт.

244

NSS

NOT SOLD SEPARAT

Housing, Gear

1шт.

245

NSS

NOT SOLD SEPARAT

Gear

1шт.

246

NSS

NOT SOLD SEPARAT

Gear

1шт.

247

NSS

NOT SOLD SEPARAT

Housing

1шт.

248

LE01175

RING

1шт.

249

LG00536

SPRING

1шт.

250

LF00043

ADJUSTER

1шт.

251

163662A1

LOCK NUT

1шт.

252

163663A1

FILTER

1шт.

253

LA00593

BOLT,Hex Skt, M8 x 50mm, Cl 12.9

2шт.

254

LA00594

BOLT,Hex Skt, M8 x 65mm, Cl 12.9

2шт.

255

LA00592

BOLT,Hex Skt, M10 x 30mm, Cl 12.9

4шт.

256

155496A1

PLUG

1шт.

257

163667A1

SEALING RING

1шт.

258

154733A1

O-RING

1шт.

259

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

260

154482A1

O-RING

1шт.

261

163668A1

RING, LOCKING

RING, LOCK

1шт.
