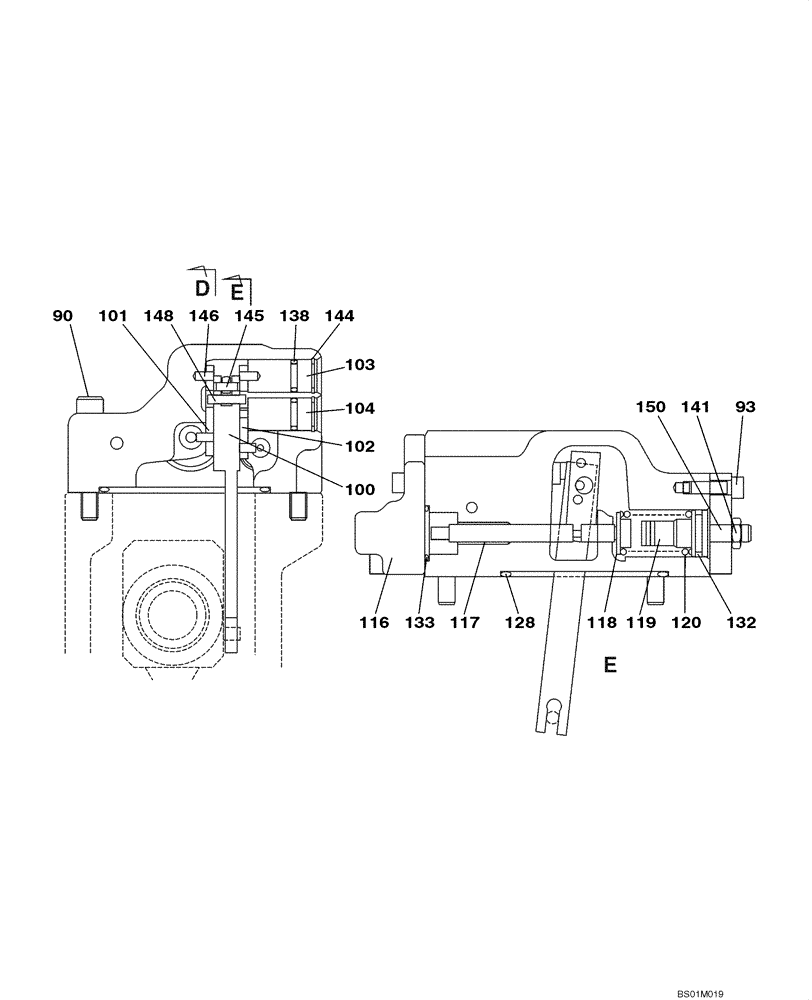

Запчасти Case CX800 (08-59) - PUMP ASSY, HYDRAULIC - LOW PRESSURE (08) - HYDRAULICS

KUJ0309

PUMP, HYDRAULIC

Includes All Parts On Figures 08-56 - 08-61A

1шт.

87341996

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP, For N.A. Only

1шт.

87341997

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

LJ01299

REGULATOR

Includes All Parts on Figures 08-58, 08-59

1шт.

90

108R008Z050N

BOLT

2шт.

93

862-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

6шт.

100

NSS

NOT SOLD SEPARAT

Lever

1шт.

101

NSS

NOT SOLD SEPARAT

Lever

1шт.

102

NSS

NOT SOLD SEPARAT

Lever

1шт.

103

NSS

NOT SOLD SEPARAT

Plug

1шт.

104

NSS

NOT SOLD SEPARAT

Plug

1шт.

116

NSS

NOT SOLD SEPARAT

Cover

1шт.

117

NSS

NOT SOLD SEPARAT

Piston

1шт.

118

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

119

NSS

NOT SOLD SEPARAT

Adjuster

1шт.

120

NSS

NOT SOLD SEPARAT

Spring, Compression

1шт.

128

154685A1

O-RING

1шт.

132

154489A1

O-RING

1шт.

133

154501A1

O-RING

1шт.

138

154467A1

O-RING,10.8mm ID x 2.4mm Width

11шт.

141

LA00065

JAM NUT

1шт.

141

LA010640

JAM NUT

1шт.

144

800-2115

SNAP RING,M15, Int

2шт.

145

NSS

NOT SOLD SEPARAT

1шт.

146

NSS

NOT SOLD SEPARAT

4шт.

148

NSS

NOT SOLD SEPARAT

1шт.

150

LA00759

BOLT,Hex Skt Hd

1шт.
