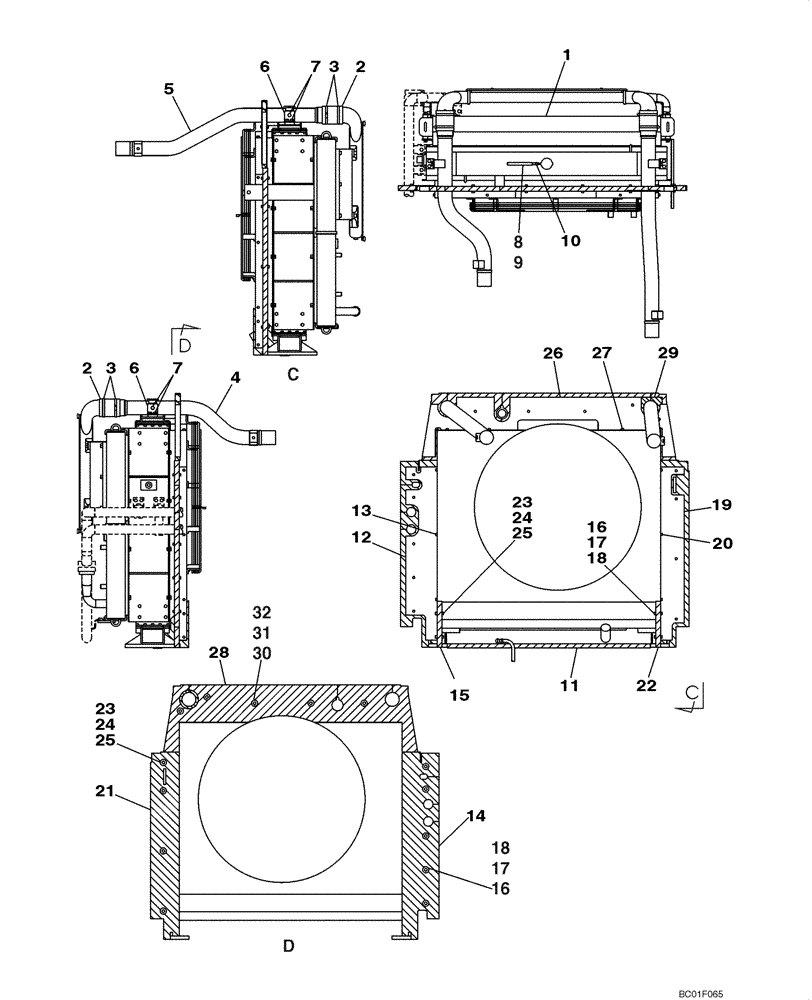

Запчасти Case CX800 (02-06) - RADIATOR MOUNTING (02) - ENGINE

1

KUH0113

RADIATOR

See Figure 02-05

1шт.

2

KTH0635

RADIATOR HOSE

2шт.

3

150294A1

CLAMP,95mm - 115mm

4шт.

4

KUH0125

PIPE ASSY.

1шт.

5

KUH0129

PIPE ASSY.

1шт.

6

KUH0126

BRACKET

2шт.

7

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

8

150487A1

HOSE

1шт.

9

150401A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 1000 mm Length

1шт.

10

165951A1

CLAMP

1шт.

11

KUH0135

SEAL

1шт.

12

KUH0141

BRACKET

1шт.

13

166345A1

BOLT

With Attached Washer

3шт.

14

KUH0136

SEAL

1шт.

15

KUH0139

SEAL

1шт.

16

KHH0358

RETAINER

7шт.

17

627-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9, Full Thd

7шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

19

KUH0142

BRACKET

1шт.

20

166345A1

BOLT

With Attached Washer

3шт.

21

KUH0137

SEAL

1шт.

22

KUH0139

SEAL

1шт.

23

KHH0358

RETAINER

6шт.

24

627-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9, Full Thd

6шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

26

KUH0143

BRACKET

1шт.

27

166345A1

BOLT

With Attached Washer

4шт.

28

KUH0138

SEAL

1шт.

29

KUH0140

PAD, RUBBER

1шт.

30

KHH0358

RETAINER

5шт.

31

627-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9, Full Thd

5шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.
