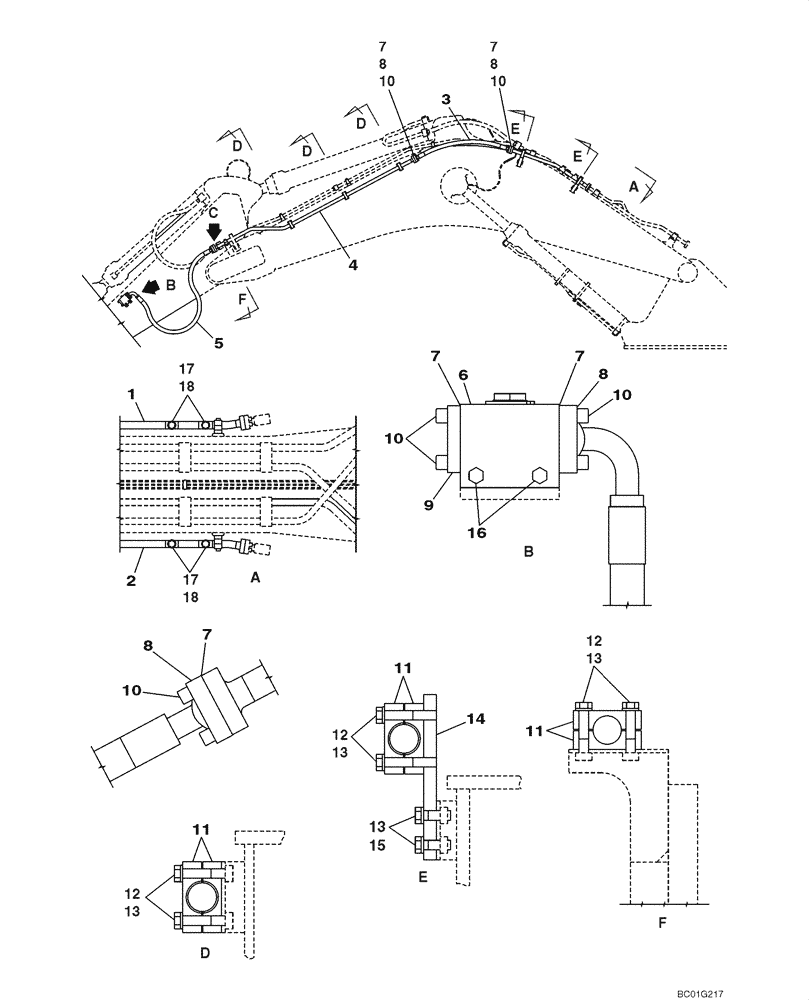

Запчасти Case CX800 (08-55) - HYDRAULICS - AUXILIARY ATTACHMENT (08) - HYDRAULICS

Arm 2,98 m (9 Ft, 9 In)

1шт.

Short Arm

1шт.

1

KUV0217

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

2

KUV0219

HYD TUBE,38.6 mm ID x 48.6 mm OD

1шт.

3

KUV0051

HYDRAULIC HOSE,38.10 mm ID x 1550.00 mm

2шт.

4

KUV10540

HYD TUBE,38.6 mm ID x 48.6 mm OD

Replaces KUV0135

2шт.

5

KUV0063

HYDRAULIC HOSE,38.1mm ID x 2650mm L

2шт.

6

KUV0311

VALVE

2шт.

7

168211A1

O-RING

10шт.

8

KTJ0169

FLANGE

Split

16шт.

9

KUP0008

COUPLING FLANGE

Flat

2шт.

10

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

40шт.

11

KUV0055

CLAMP BRACKET

24шт.

12

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

24шт.

13

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

32шт.

14

KUV0070

PLATE

4шт.

15

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

16

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

4шт.

17

162659A1

PLUG

4шт.

18

154523A1

O-RING

1шт.
