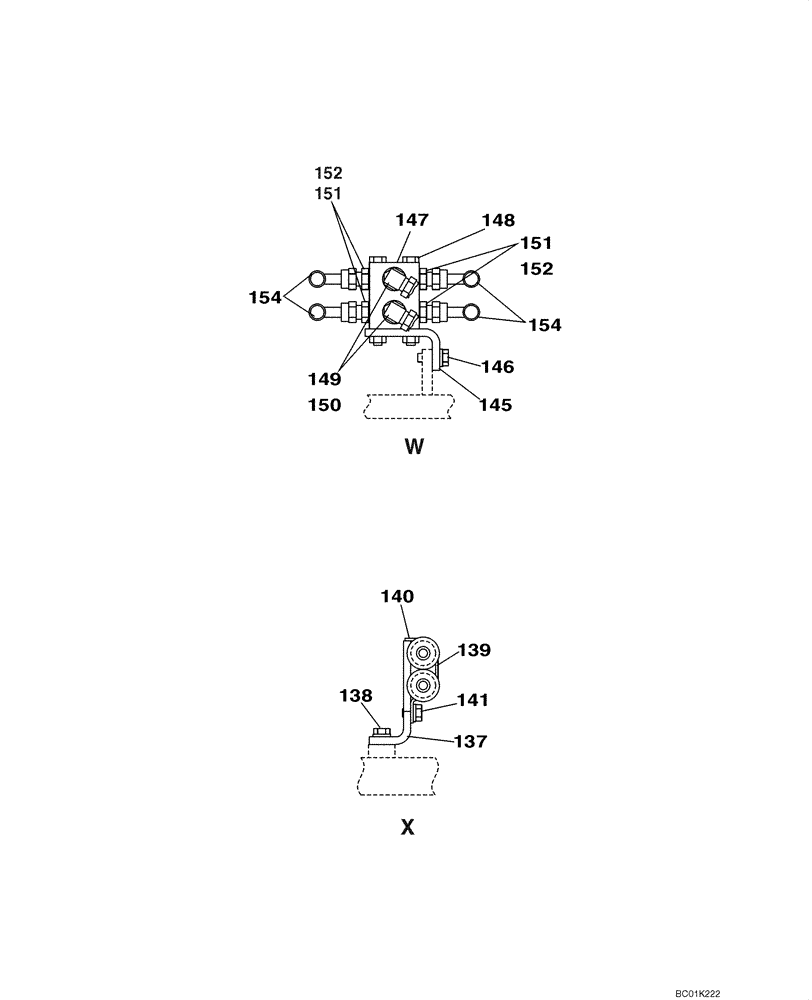

Запчасти Case CX800 (08-53) - COUNTERWEIGHT REMOVAL SYSTEM (08) - HYDRAULICS

137

KUJ0302

BRACKET

1шт.

138

166052A1

BOLT

With Attached Washer

2шт.

139

KUJ0293

CLAMP

1шт.

140

HEJ0122

HOSE CLAMP

2шт.

141

166346A1

BOLT,Sems, M10

With Attached Washer

1шт.

145

KUJ0305

BRACKET

1шт.

146

166347A1

BOLT,Sems, M10 x 30mm

With Attached Washer

2шт.

147

KUJ0304

MANIFOLD

1шт.

148

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

149

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 150

2шт.

150

154475A1

O-RING

1шт.

151

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 152

4шт.

152

154475A1

O-RING

1шт.

154

KHJ2395

HYDRAULIC HOSE,9.50 mm ID x 1550.00 mm

4шт.
