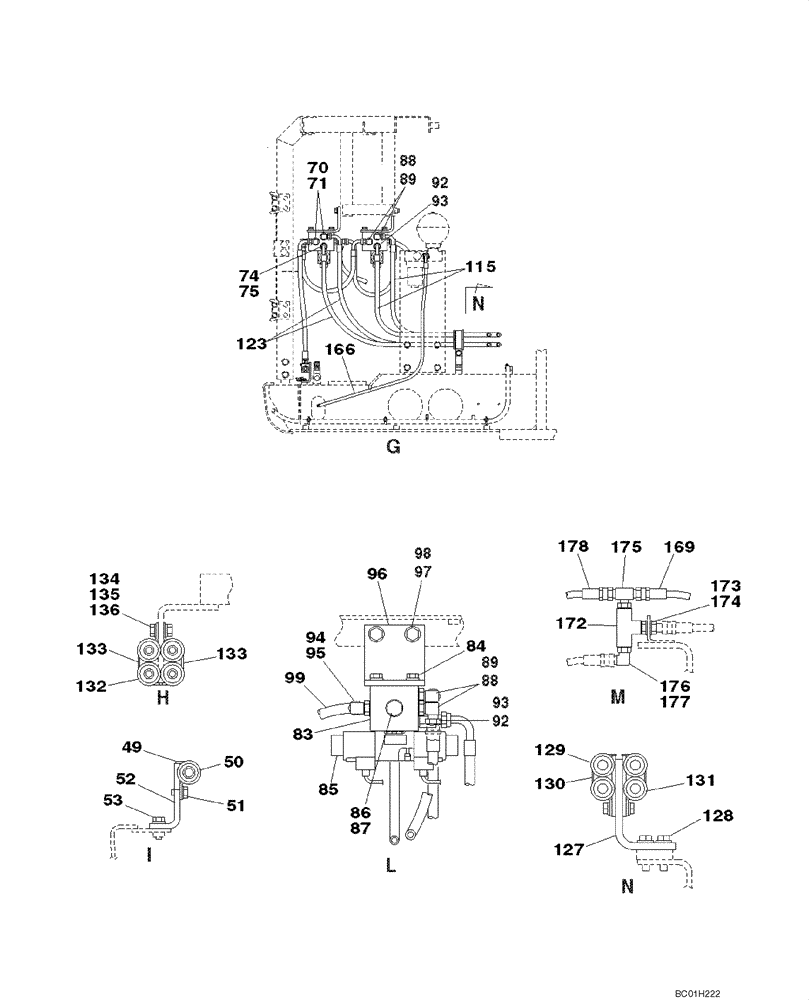

Запчасти Case CX800 (08-51) - COUNTERWEIGHT REMOVAL SYSTEM (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
49
HEJ0119
COLLAR
1шт.
50
HEJ0121
COLLAR
1шт.
51
166351A1
BOLT,Sems, M10 x 20mm
With Attached Washer
1шт.
52
KUJ0292
BRACKET
1шт.
53
166347A1
BOLT,Sems, M10 x 30mm
With Attached Washer
2шт.
70
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 71
2шт.
71
154475A1
O-RING
1шт.
74
159226A1
ADAPTER
Incl. 75
1шт.
75
154475A1
O-RING
1шт.
83
KUJ0298
MANIFOLD VALVE
1шт.
84
166052A1
BOLT
With Attached Washer
4шт.
85
KUJ0288
SOLENOID VALVE
1шт.
86
153105A1
PLUG
Incl. 87
1шт.
87
154475A1
O-RING
1шт.
88
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 89
2шт.
89
154475A1
O-RING
1шт.
92
159226A1
ADAPTER
Incl. 93
1шт.
93
154475A1
O-RING
1шт.
94
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 95
1шт.
95
154475A1
O-RING
1шт.
96
KUB0181
BRACKET
1шт.
97
627-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd
With attached washer
2шт.
98
150811A1
WASHER
M12
2шт.
99
KHJ2284
HYDRAULIC HOSE,9.50 mm ID x 500.00 mm
1шт.
115
KHJ2286
HYDRAULIC HOSE,9.50 mm ID x 3500.00 mm
2шт.
123
KHJ1819
HYDRAULIC HOSE
2шт.
127
KUB0182
BRACKET
1шт.
128
166352A1
BOLT
With Attached Washer
2шт.
129
HEJ0122
HOSE CLAMP
4шт.
130
KUJ0293
CLAMP
2шт.
131
166346A1
BOLT,Sems, M10
With Attached Washer
2шт.
132
HEJ0122
HOSE CLAMP
4шт.
133
KUJ0293
CLAMP
2шт.
134
166347A1
BOLT,Sems, M10 x 30mm
With Attached Washer
1шт.
135
150409A1
WASHER
10,5 x 21 x 3,2 mm
1шт.
136
829-1410
NUT,M10 x 1.5, Cl 10.9
1шт.
166
160439A1
HOSE ASSY.
1шт.
169
KHJ1608
HOSE
1шт.
172
KHJ17090
VALVE PRESSURE RELIE
; Replaces 158186A1
1шт.
173
158183A1
ELEC CONNECTOR,Male
Incl. 174
1шт.
174
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
175
167321A1
TEE
1шт.
176
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 177
1шт.
177
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
178
157851A1
HOSE
2850 mm (112-1/4 in), See Figure 08-49
1шт.
Выбрано товаров: 45
