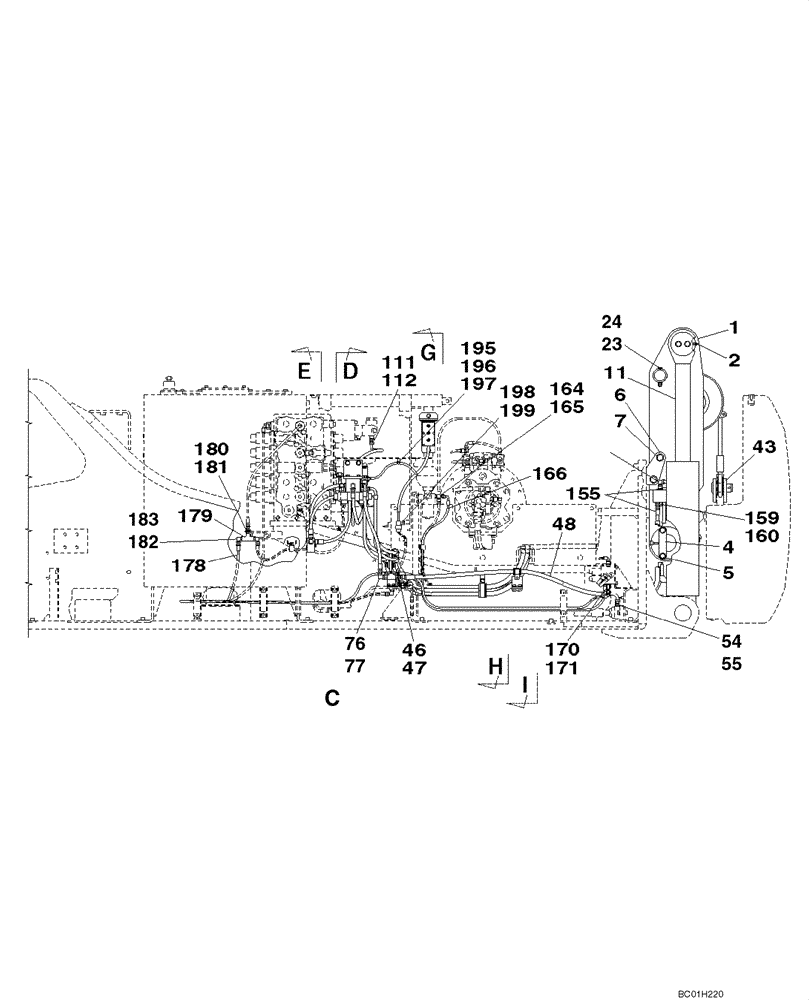

Запчасти Case CX800 (08-49) - COUNTERWEIGHT REMOVAL SYSTEM (08) - HYDRAULICS

1

KUB0157

ARM

1шт.

2

153630A1

LUBE NIPPLE

2шт.

4

KUB0175

PLATE

2шт.

5

166348A1

BOLT

With Attached Washer

4шт.

6

KUB0163

PLATE

2шт.

7

105R020Y050R

BOLT

4шт.

11

KUB0155

HYDRAULIC CYLINDER

Lift, Left Hand, See Figure 08-84

1шт.

23

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

43

KUB0172

BRACKET

See Figure 08-48

1шт.

46

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 47

1шт.

47

154475A1

O-RING

1шт.

48

KUJ0291

HYDRAULIC HOSE,9.50 mm ID x 1500.00 mm

1шт.

54

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 55

1шт.

55

154475A1

O-RING

1шт.

76

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 77

1шт.

77

154475A1

O-RING

1шт.

111

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 112

1шт.

112

154475A1

O-RING

1шт.

159

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 160

2шт.

160

154475A1

O-RING

1шт.

161

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 162

2шт.

162

154475A1

O-RING

1шт.

164

159497A1

TEE

Incl. 165

1шт.

165

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

166

160439A1

HOSE ASSY.

1шт.

170

162554A1

FITTING

Incl. 171

1шт.

171

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

178

157851A1

HOSE

2850 mm (112-1/4 in), See Page(s) 8-151

1шт.

179

KHJ17090

VALVE PRESSURE RELIE

; Replaces 158186A1

1шт.

180

158183A1

ELEC CONNECTOR,Male

Incl. 181

1шт.

181

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

182

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 183

2шт.

183

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

195

150860A1

COLLAR

1шт.

196

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

197

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

198

158962A1

CLIP

1шт.

199

167518A1

BOLT

1шт.
