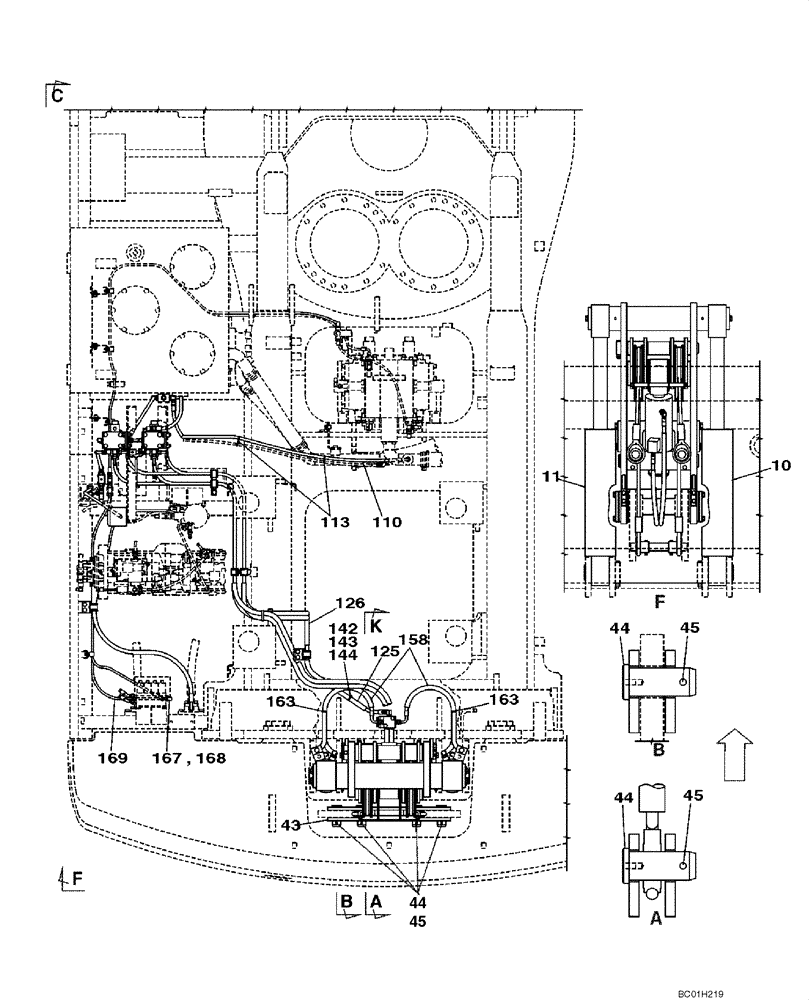

Запчасти Case CX800 (08-48) - COUNTERWEIGHT REMOVAL SYSTEM (08) - HYDRAULICS

10

KUB0154

HYDRAULIC CYLINDER

Lift, Right Hand, See Figure 08-83

1шт.

11

KUB0155

HYDRAULIC CYLINDER

Lift, Left Hand, See Figure 08-84

1шт.

43

KUB0172

BRACKET

1шт.

44

KUB0161

PIN

4шт.

45

C4E6684

SPLIT PIN/SAFETY PIN

4шт.

110

KRJ5868

HYDRAULIC HOSE,9.50 mm ID x 1750.00 mm

1шт.

113

150496A1

MOUNTING CLIP

250 mm (10 in)

2шт.

125

158060A1

PLASTIC-RUBBER TUBE

2шт.

126

158062A1

PLASTIC-RUBBER TUBE

2шт.

142

150860A1

COLLAR

1шт.

143

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

144

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

158

158062A1

PLASTIC-RUBBER TUBE

4шт.

163

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

167

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 168

1шт.

168

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

169

KHJ1608

HOSE

1шт.
