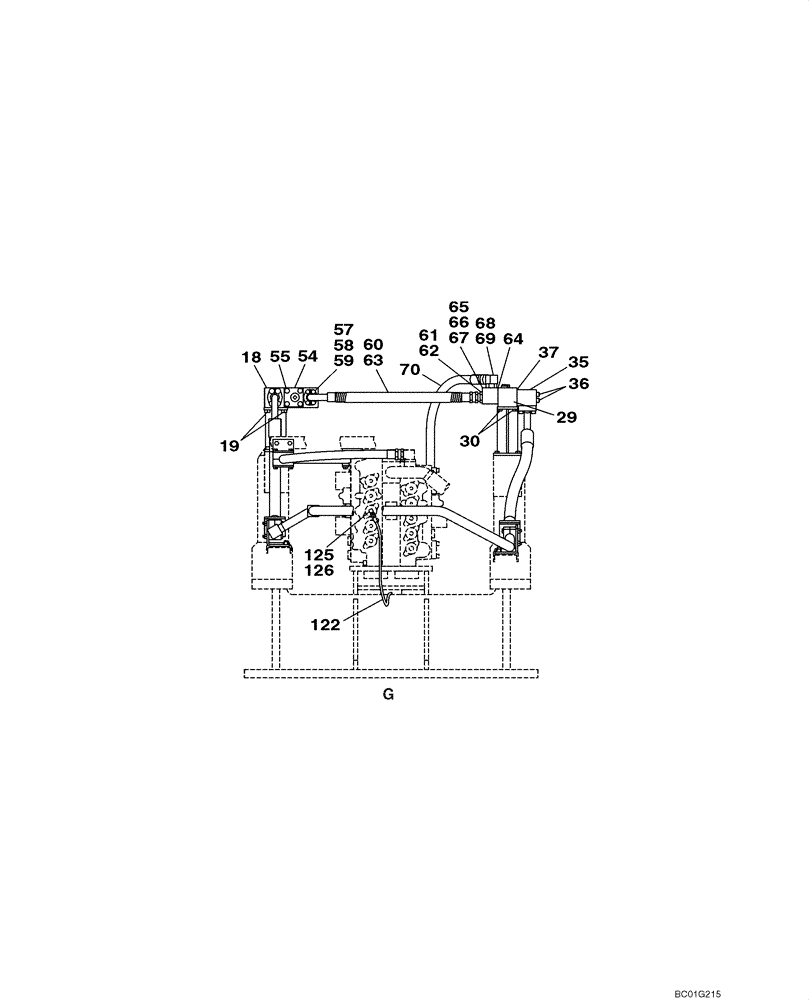

Запчасти Case CX800 (08-47) - HYDRAULICS - MULTIFUNCTION AUXILIARY (08) - HYDRAULICS

18

KSJ2740

MANIFOLD

1шт.

19

166373A1

BOLT,Sems, M16 x 40mm

With Attached Washer

4шт.

29

KSJ2755

VALVE

1шт.

30

166352A1

BOLT

With Attached Washer

4шт.

35

KUJ0156

MANIFOLD VALVE

1шт.

36

108R014Y120R

BOLT

4шт.

37

164450A1

O-RING

1шт.

54

162658A1

MANIFOLD VALVE

Incl. 54A

1шт.

54a

LQC0039

SEAL KIT

Seal, Not Illustrated

1шт.

55

862-16030

HEX SOC SCREW,M16 x 30mm, Cl 12.9

4шт.

57

164450A1

O-RING

1шт.

58

157856A1

CLAMP BRACKET

Split

2шт.

59

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

60

168048A1

HYDRAULIC HOSE,31.80 mm ID x 900.00 mm

1шт.

61

159047A1

ADAPTER

Incl. 62

1шт.

62

154559A1

O-RING

1шт.

63

151046A1

GUARD

1шт.

64

164450A1

O-RING

1шт.

65

162667A1

MANIFOLD

1шт.

66

862-14090

HEX SOC SCREW,M14 x 90mm, Cl 12.9

4шт.

67

184-014VR

SPRING WASHER

4шт.

68

157582A1

ELBOW,90 Degree, 1 1/4" O-Ring x 1 1/4"

Incl. 69

1шт.

69

154559A1

O-RING

1шт.

70

KUJ0250

HYDRAULIC HOSE,31.80 mm ID x 1020.00 mm

1шт.

122

165149A1

HOSE ASSY.

See Figure 08-45

1шт.

125

156554A1

ELBOW

Incl. 126

1шт.

126

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
