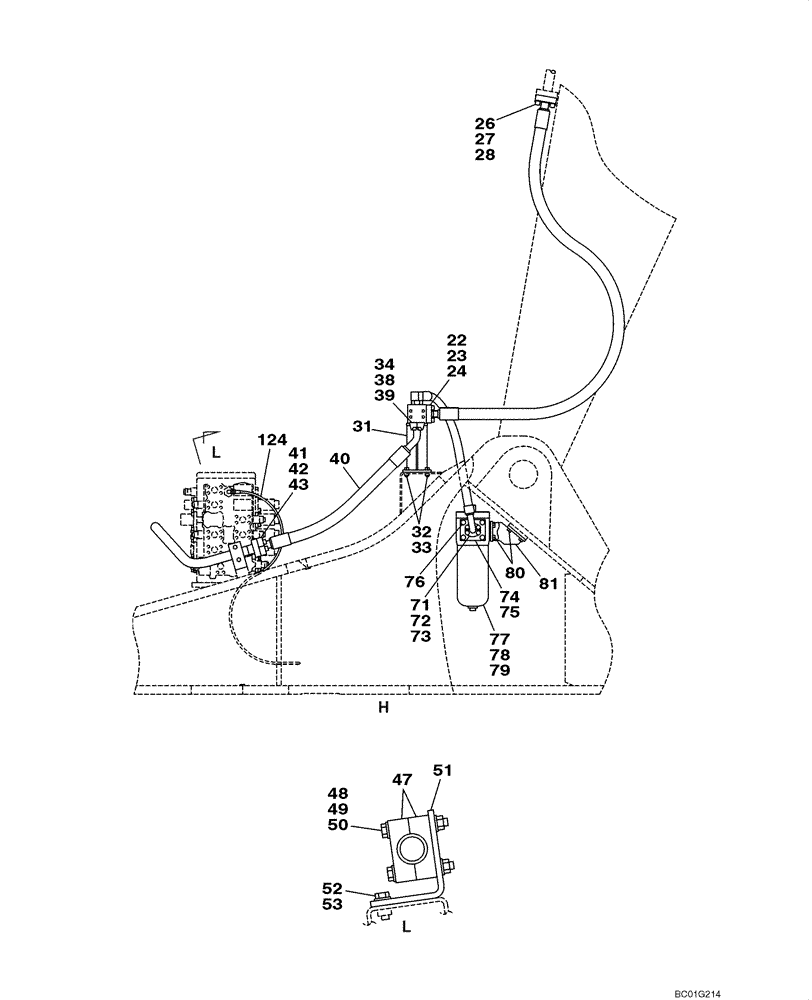

Запчасти Case CX800 (08-46) - HYDRAULICS - MULTIFUNCTION AUXILIARY (08) - HYDRAULICS

22

164450A1

O-RING

1шт.

23

150124A1

FLANGE

Split

2шт.

24

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.

26

168211A1

O-RING

2шт.

27

KTJ0169

FLANGE

Split

4шт.

28

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

8шт.

31

KUJ0263

BRACKET

1шт.

32

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

33

150811A1

WASHER

M12

4шт.

34

164450A1

O-RING

1шт.

38

150124A1

FLANGE

Split

2шт.

39

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.

40

KUJ0262

HYDRAULIC HOSE,38.10 mm ID x 1140.00 mm

1шт.

41

168211A1

O-RING

1шт.

42

KTJ0169

FLANGE

Split

2шт.

43

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

4шт.

47

KUJ0112

PIPE CLAMP

2шт.

48

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

49

150811A1

WASHER

M12

4шт.

50

829-1412

NUT,M12, Cl 10.9

2шт.

51

KUJ0113

BRACKET

1шт.

52

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

53

150811A1

WASHER

M12

2шт.

71

164450A1

O-RING

1шт.

72

157856A1

CLAMP BRACKET

Split

2шт.

73

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

74

154721A1

O-RING,99.4mm ID x 3.1mm Width

1шт.

75

KUJ0155

COUPLING FLANGE

Flat

1шт.

76

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

77

KUJ0159

FILTER

Incl. 78, 79

1шт.

78

KUJ0160

FILTER, ELEMENT

ELEMENT, FILTER

1шт.

79

159706A1

INDICATOR

1шт.

80

166352A1

BOLT

With Attached Washer

8шт.

81

KUJ0119

BRACKET

1шт.

124

KHJ1932

HOSE

See Figure 08-45

1шт.
