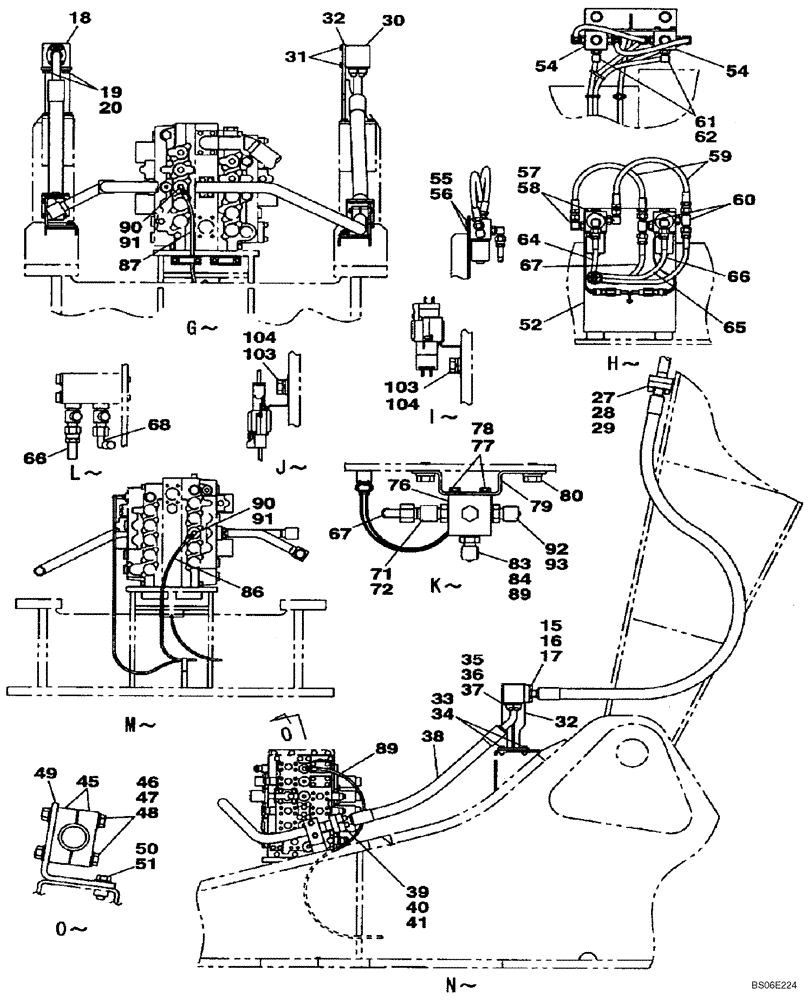

Запчасти Case CX800 (08-43E) - HYDRAULICS - DOUBLE ACTING CIRCUIT, TRIGGERED ACTIVATED (08) - HYDRAULICS

15

164450A1

O-RING

1шт.

16

150124A1

FLANGE

Split

1шт.

17

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

2шт.

18

KSJ2830

MANIFOLD VALVE

1шт.

19

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

4шт.

20

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

27

168211A1

O-RING

2шт.

28

KTJ0169

FLANGE

Split

4шт.

29

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

8шт.

30

163436A1

MANIFOLD

1шт.

31

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

32

KUJ0405

BRACKET

1шт.

33

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

34

150811A1

WASHER

M12

4шт.

35

164450A1

O-RING

1шт.

36

150124A1

FLANGE

2шт.

37

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.

38

KUJ0408

HYDRAULIC HOSE,31.80 mm ID x 1110.00 mm

1шт.

39

168211A1

O-RING

1шт.

40

KTJ0169

FLANGE

2шт.

41

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

4шт.

45

KUJ0112

PIPE CLAMP

2шт.

46

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

47

150811A1

WASHER

4шт.

48

829-1412

NUT,M12, Cl 10.9

2шт.

49

KUJ0113

BRACKET

1шт.

50

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

51

150811A1

WASHER

2шт.

52

KSJ2835

BRACKET

1шт.

54

162538A1

VALVE

See Figure 08-72

2шт.

55

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

56

892-11006

LOCK WASHER,M6

4шт.

57

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 58

2шт.

58

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

168780A1

HYDRAULIC HOSE,6.30 mm ID x 350.00 mm

2шт.

60

167321A1

TEE

2шт.

61

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 62

2шт.

62

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

64

161493A1

HOSE

1шт.

65

159020A1

HOSE

1шт.

66

153592A1

HOSE

1шт.

67

161494A1

HOSE ASSY.

1шт.

68

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

71

159497A1

TEE

Incl. 72

1шт.

72

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

76

162538A1

VALVE

See Figure 08-72

1шт.

77

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

78

892-11006

LOCK WASHER,M6

2шт.

79

KRJ5751

BRACKET

1шт.

80

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

83

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 84

1шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

86

MPJ5370

HOSE

1шт.

87

165149A1

HOSE ASSY.

1шт.

89

KSJ1748

ELBOW

1шт.

90

156554A1

ELBOW

Incl. 91

2шт.

91

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

92

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 93

1шт.

93

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

165405A1

CLIP

2шт.

104

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.
