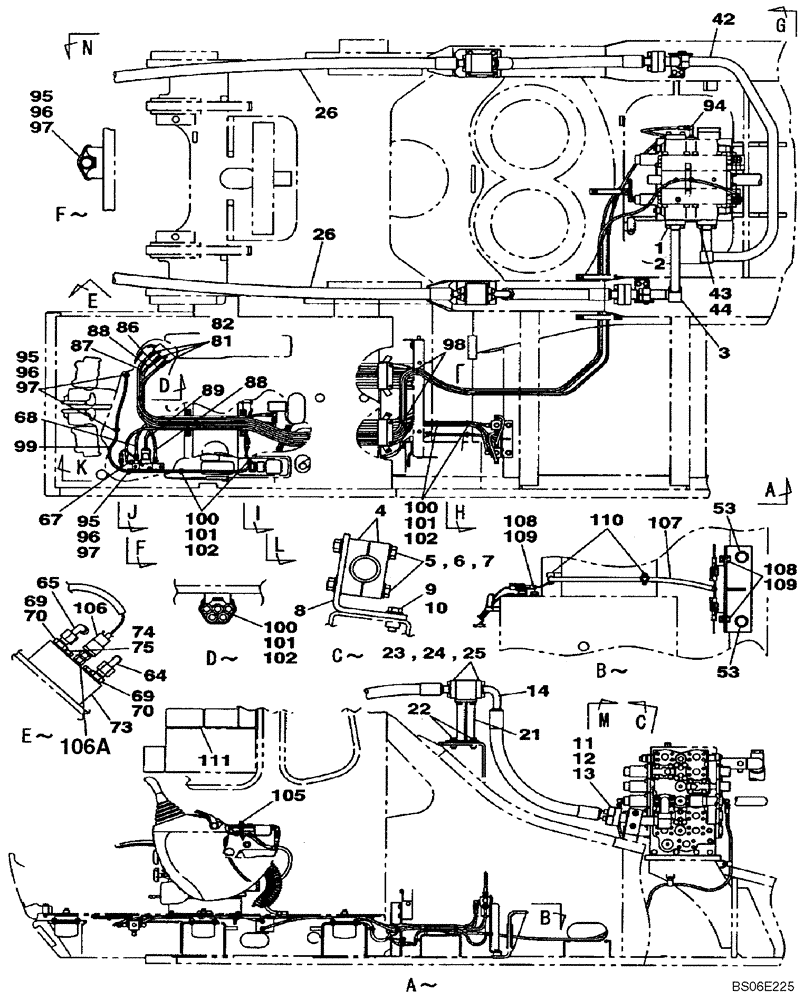

Запчасти Case CX800 (08-43D) - HYDRAULICS - DOUBLE ACTING CIRCUIT, TRIGGERED ACTIVATED (08) - HYDRAULICS

1

164450A1

O-RING

1шт.

2

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

2шт.

3

KUJ0247

TUBE ASSY.,34.7 mm ID x 42.7 mm OD

1шт.

4

KUJ0112

PIPE CLAMP

2шт.

5

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

6

150811A1

WASHER

M12

4шт.

7

829-1412

NUT,M12, Cl 10.9

2шт.

8

KUJ0113

BRACKET

1шт.

9

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

10

150811A1

WASHER

M12

2шт.

11

168211A1

O-RING

1шт.

12

KTJ0169

FLANGE

Split

2шт.

13

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

4шт.

14

KUJ0261

HYDRAULIC HOSE,38.10 mm ID x 1040.00 mm

1шт.

21

KUJ0392

BRACKET

1шт.

22

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

23

164450A1

O-RING

2шт.

24

150124A1

FLANGE

4шт.

25

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

8шт.

26

KUJ0453

HYDRAULIC HOSE,38.10 mm ID x 2580.00 mm

2шт.

42

KUJ10010

TUBE ASSY.,38.6 mm ID x 48.6 mm OD

1шт.

43

164450A1

O-RING

1шт.

44

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.

53

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

64

161493A1

HOSE

1шт.

65

159020A1

HOSE

1шт.

67

161494A1

HOSE ASSY.

1шт.

68

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

69

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 110

2шт.

70

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

73

KHJ17100

VALVE PRESSURE RELIE

; Replaces KHJ1655

1шт.

74

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

75

153081A1

WASHER

2шт.

81

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 122

3шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

86

MPJ5370

HOSE

1шт.

87

165149A1

HOSE ASSY.

1шт.

88

161272A1

HOSE

1шт.

89

KSJ1748

ELBOW

1шт.

94

KHJ1178

ELBOW

1шт.

95

150860A1

COLLAR

3шт.

96

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3шт.

97

150496A1

MOUNTING CLIP

3шт.

98

150071A1

MOUNTING CLIP

1шт.

99

KHR3351

HARNESS

1шт.

100

150860A1

COLLAR

5шт.

101

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

102

150496A1

MOUNTING CLIP

5шт.

105

KHR3129

SWITCH

1шт.

106

KHR10800

PRESSURE SWITCH

1шт.

106a

KHJ11460

ADAPTER

1шт.

107

KHR3892

WIRE HARNESS

1шт.

108

158962A1

CLIP

3шт.

109

167518A1

BOLT

3шт.

110

KHR2787

CLAMP

2шт.

111

KHP1755

DECAL

1шт.
