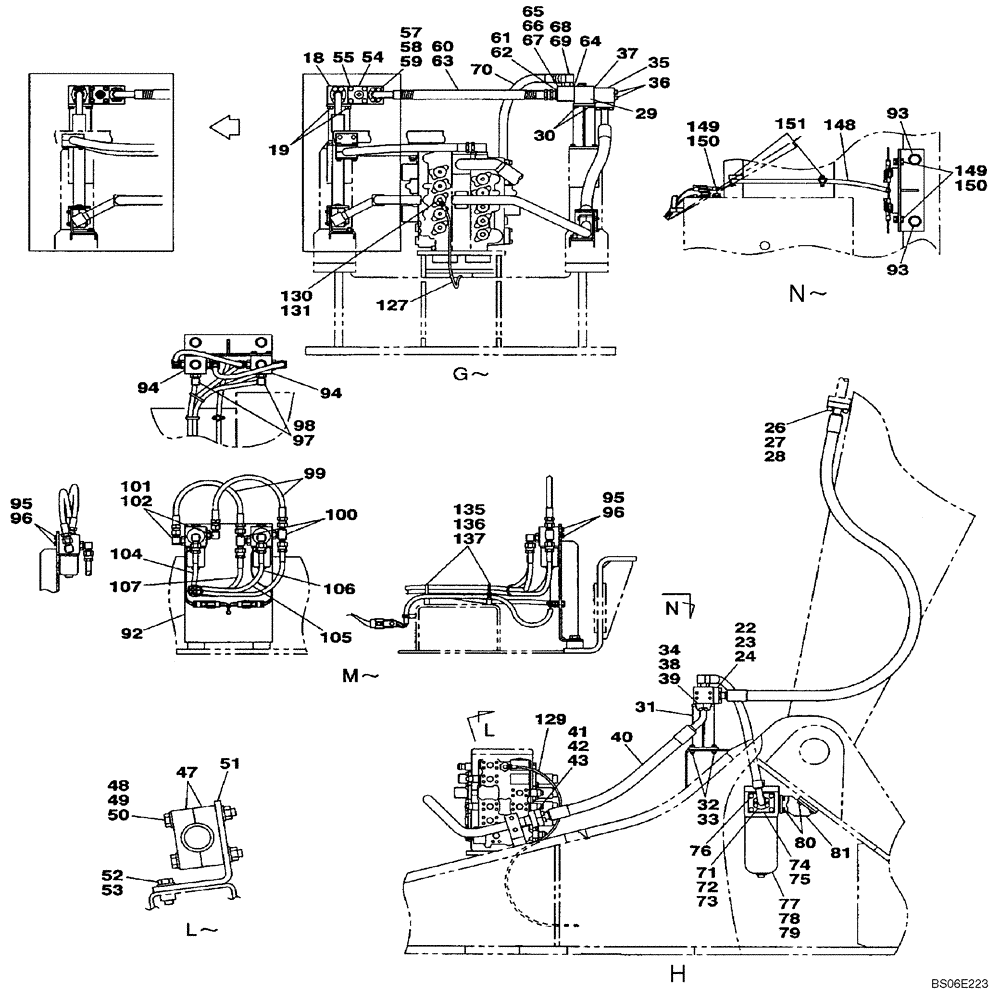

Запчасти Case CX800 (08-43C) - HYDRAULICS - DOUBLE ACTING CIRCUIT (08) - HYDRAULICS

18

KSJ2740

MANIFOLD

1шт.

19

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

22

164450A1

O-RING

1шт.

23

150124A1

FLANGE

Split

2шт.

24

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.

26

168211A1

O-RING

2шт.

27

KTJ0169

FLANGE

Split

4шт.

28

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

8шт.

29

KSJ2755

VALVE

1шт.

30

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

With attached washer

4шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

31

KUJ0263

BRACKET

1шт.

32

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

33

150811A1

WASHER

M12

4шт.

34

164450A1

O-RING

1шт.

35

KUJ0156

MANIFOLD VALVE

1шт.

36

108R014Y120R

BOLT

4шт.

37

164450A1

O-RING

1шт.

38

150124A1

FLANGE

2шт.

39

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.

40

KUJ0262

HYDRAULIC HOSE,38.10 mm ID x 1140.00 mm

1шт.

41

168211A1

O-RING

1шт.

42

KTJ0169

FLANGE

2шт.

43

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

4шт.

47

KUJ0112

PIPE CLAMP

2шт.

48

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

49

150811A1

WASHER

4шт.

50

829-1412

NUT,M12, Cl 10.9

2шт.

51

KUJ0113

BRACKET

1шт.

52

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

53

150811A1

WASHER

2шт.

54

162658A1

MANIFOLD VALVE

Incl. LQC0039 Seal Kit

1шт.

55

862-16030

HEX SOC SCREW,M16 x 30mm, Cl 12.9

4шт.

57

164450A1

O-RING

1шт.

58

157856A1

CLAMP BRACKET

2шт.

59

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

60

168048A1

HYDRAULIC HOSE,31.80 mm ID x 900.00 mm

1шт.

61

159047A1

ADAPTER

Incl. 62

1шт.

62

154559A1

O-RING

1шт.

63

151046A1

GUARD

1шт.

64

164450A1

O-RING

1шт.

65

162667A1

MANIFOLD

1шт.

66

862-14090

HEX SOC SCREW,M14 x 90mm, Cl 12.9

4шт.

67

150336A1

SPRING WASHER

4шт.

68

157582A1

ELBOW,90 Degree, 1 1/4" O-Ring x 1 1/4"

1шт.

69

154559A1

O-RING

1шт.

70

KUJ0250

HYDRAULIC HOSE,31.80 mm ID x 1020.00 mm

1шт.

71

164450A1

O-RING

1шт.

72

157856A1

CLAMP BRACKET

2шт.

73

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

74

154721A1

O-RING,99.4mm ID x 3.1mm Width

1шт.

75

KUJ0155

COUPLING FLANGE

1шт.

76

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

77

KUJ0159

FILTER

1шт.

78

KUJ0160

FILTER, ELEMENT

ELEMENT, FILTER

1шт.

79

159706A1

INDICATOR

1шт.

80

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

81

KUJ0119

BRACKET

1шт.

92

KSJ2835

BRACKET

1шт.

93

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

94

162538A1

VALVE

See Figure 08-72

2шт.

95

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

96

892-11006

LOCK WASHER,M6

4шт.

97

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 98

2шт.

98

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

99

168780A1

HYDRAULIC HOSE,6.30 mm ID x 350.00 mm

1шт.

100

167321A1

TEE

2шт.

101

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 102

2шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

104

161493A1

HOSE

1шт.

105

159020A1

HOSE

1шт.

106

153592A1

HOSE

1шт.

107

161494A1

HOSE ASSY.

1шт.

127

165149A1

HOSE ASSY.

1шт.

130

156554A1

ELBOW

Incl. 131

1шт.

131

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

135

150860A1

COLLAR

2шт.

136

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

137

150496A1

MOUNTING CLIP

2шт.

148

KHR3892

WIRE HARNESS

1шт.

149

158962A1

CLIP

3шт.

150

167518A1

BOLT

3шт.

151

KHR2787

CLAMP

2шт.
