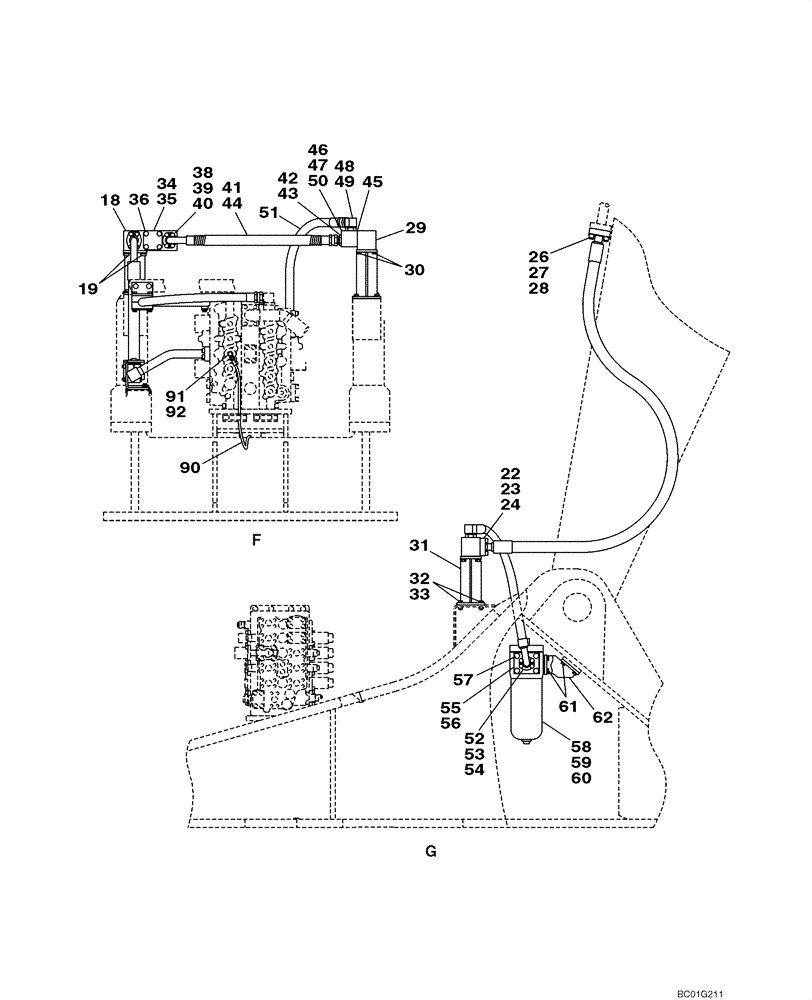

Запчасти Case CX800 (08-43) - HYDRAULICS - SINGLE ACTING CIRCUIT/HAMMER (08) - HYDRAULICS

18

KSJ2740

MANIFOLD

1шт.

19

166373A1

BOLT,Sems, M16 x 40mm

With Attached Washer

4шт.

22

164450A1

O-RING

1шт.

23

150124A1

FLANGE

Split

2шт.

24

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.

26

168211A1

O-RING

2шт.

27

KTJ0169

FLANGE

Split

4шт.

28

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

8шт.

29

163436A1

MANIFOLD

1шт.

30

166352A1

BOLT

With Attached Washer

4шт.

31

KUJ0263

BRACKET

1шт.

32

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

33

150811A1

WASHER

M12

4шт.

34

163435A1

COVER

1шт.

35

154640A1

O-RING

1шт.

36

862-16030

HEX SOC SCREW,M16 x 30mm, Cl 12.9

4шт.

38

164450A1

O-RING

1шт.

39

157856A1

CLAMP BRACKET

Split

2шт.

40

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

41

168048A1

HYDRAULIC HOSE,31.80 mm ID x 900.00 mm

1шт.

42

159047A1

ADAPTER

Incl. 43

1шт.

43

154559A1

O-RING

1шт.

44

151046A1

GUARD

1шт.

45

164450A1

O-RING

1шт.

46

162667A1

MANIFOLD

1шт.

47

862-14090

HEX SOC SCREW,M14 x 90mm, Cl 12.9

4шт.

48

157582A1

ELBOW,90 Degree, 1 1/4" O-Ring x 1 1/4"

See Figure 08-4149

1шт.

49

154559A1

O-RING

1шт.

50

184-014VR

SPRING WASHER

4шт.

51

KUJ0250

HYDRAULIC HOSE,31.80 mm ID x 1020.00 mm

1шт.

52

164450A1

O-RING

1шт.

53

157856A1

CLAMP BRACKET

Split

2шт.

54

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

55

154721A1

O-RING,99.4mm ID x 3.1mm Width

1шт.

56

KUJ0155

COUPLING FLANGE

Flat

1шт.

57

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

58

KUJ0159

FILTER

Incl. 59, 60

1шт.

59

KUJ0160

FILTER, ELEMENT

ELEMENT, FILTER

1шт.

60

159706A1

INDICATOR

1шт.

61

166352A1

BOLT

With Attached Washer

8шт.

62

KUJ0119

BRACKET

1шт.
