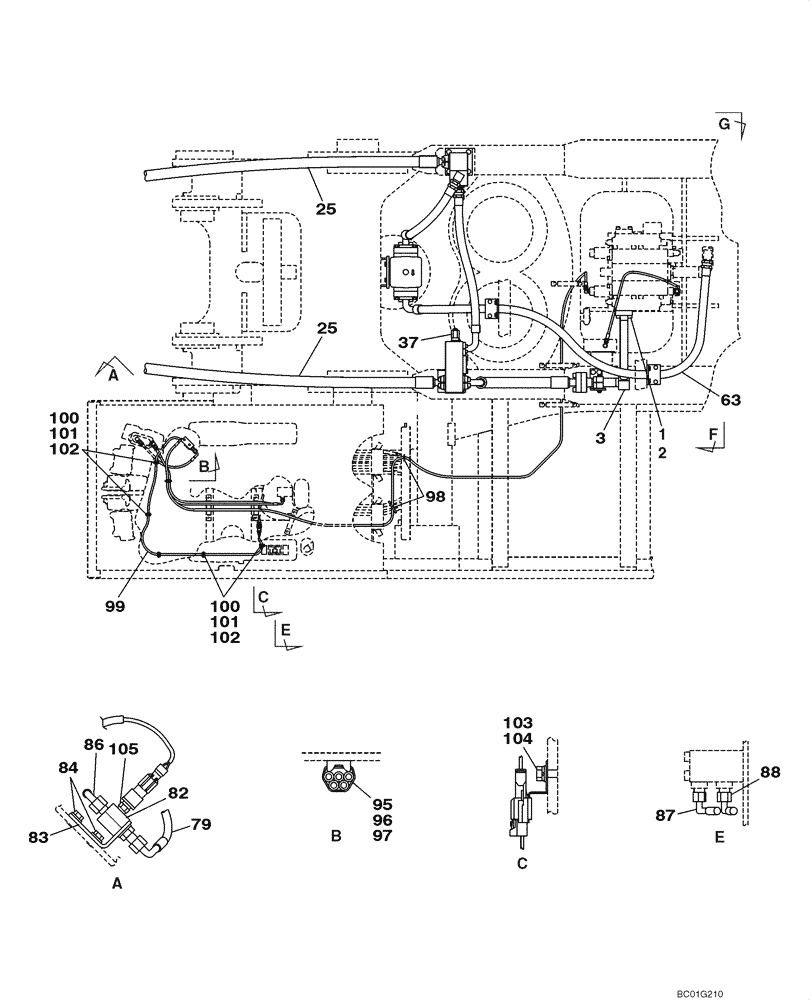

Запчасти Case CX800 (08-42) - HYDRAULICS - SINGLE ACTING CIRCUIT/HAMMER (08) - HYDRAULICS

1

164450A1

O-RING

1шт.

2

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.

3

KUJ0247

TUBE ASSY.,34.7 mm ID x 42.7 mm OD

1шт.

25

KUJ0453

HYDRAULIC HOSE,38.10 mm ID x 2580.00 mm

Replaces KUJ0265

2шт.

37

162656A1

VALVE

1шт.

63

KUJ0251

HYDRAULIC HOSE

1шт.

79

161483A1

HOSE ASSY.

See Figure 08-41

1шт.

82

KHJ11470

ADAPTER

Replaces 167852A1

1шт.

83

KHJ2127

BRACKET

1шт.

84

166345A1

BOLT

With Attached Washer

2шт.

86

KTJ1786

HOSE

See Figure 08-41

1шт.

87

164236A1

HOSE ASSY.

1000 mm (39-3/8 in), See Figure 08-41

1шт.

88

159019A1

HOSE ASSY.

900 mm (35-1/2 in), See Figure 08-41

1шт.

95

150860A1

COLLAR

1шт.

96

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

97

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

98

150071A1

MOUNTING CLIP

2шт.

99

KHR3350

HARNESS

1шт.

100

150860A1

COLLAR

5шт.

101

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

102

150496A1

MOUNTING CLIP

250 mm (10 in)

5шт.

103

165405A1

CLIP

1шт.

104

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

105

KHR10800

PRESSURE SWITCH

Replaces 159599A1

1шт.

106

150067A1

MOUNTING CLIP

Not Illustrated

1шт.
