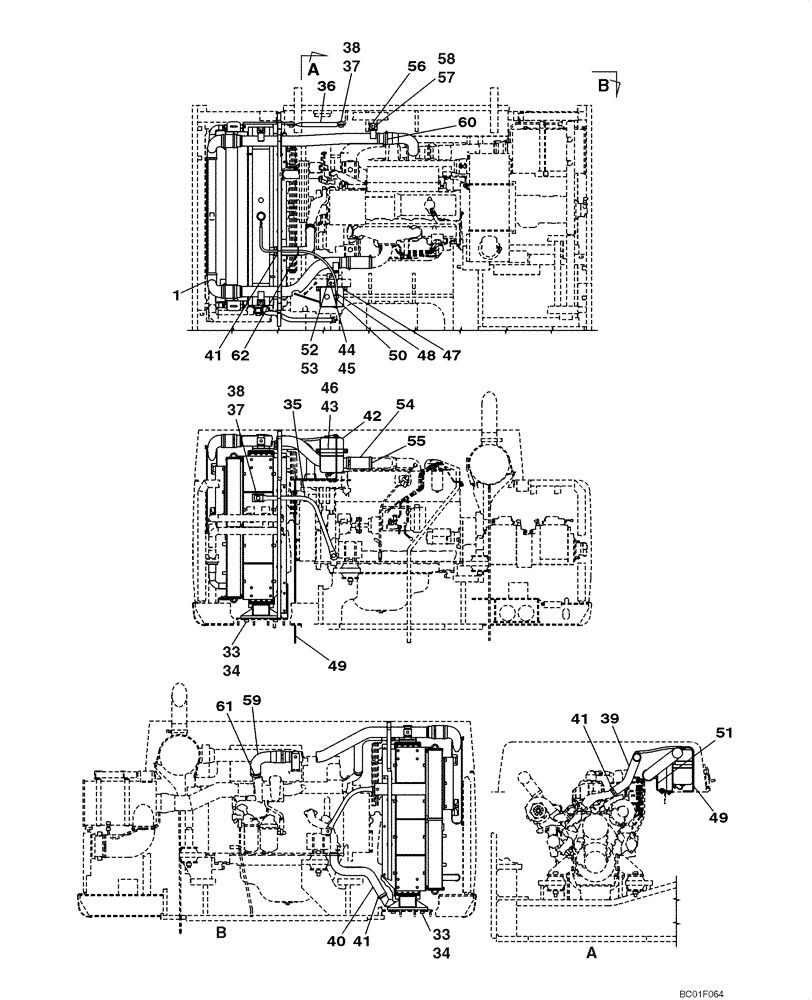

Запчасти Case CX800 (02-04) - RADIATOR - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

KUH0113

RADIATOR

See Figure 02-05

1шт.

33

102R020Y045R

BOLT

4шт.

34

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

4шт.

35

KUH0134

STAY

1шт.

36

KUH0111

STAY

1шт.

37

102R020Y035R

BOLT

4шт.

38

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

4шт.

39

KUH0132

RADIATOR HOSE

1шт.

40

KUH0133

RADIATOR HOSE

1шт.

41

165795A1

COLLAR

4шт.

42

KUH0124

TANK

1шт.

43

KUH0144

BRACKET

1шт.

44

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

45

150811A1

WASHER

M12

2шт.

46

KUH0043

HOLDER

1шт.

47

166351A1

BOLT,Sems, M10 x 20mm

With Attached Washer

2шт.

48

165951A1

CLAMP

1шт.

49

KHH0427

HOSE

1шт.

50

165952A1

MOUNTING CLIP

1шт.

51

KUH0127

BRACKET

1шт.

52

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

3шт.

53

150811A1

WASHER

M12

3шт.

54

KUH0128

RADIATOR HOSE

1шт.

55

150294A1

CLAMP,95mm - 115mm

2шт.

56

KUH0130

BRACKET

1шт.

57

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

3шт.

58

150811A1

WASHER

M12

3шт.

59

KUH0131

AIR FLEXIBLE

1шт.

60

150294A1

CLAMP,95mm - 115mm

1шт.

61

152782A1

COLLAR

1шт.

62

150071A1

MOUNTING CLIP

1шт.
