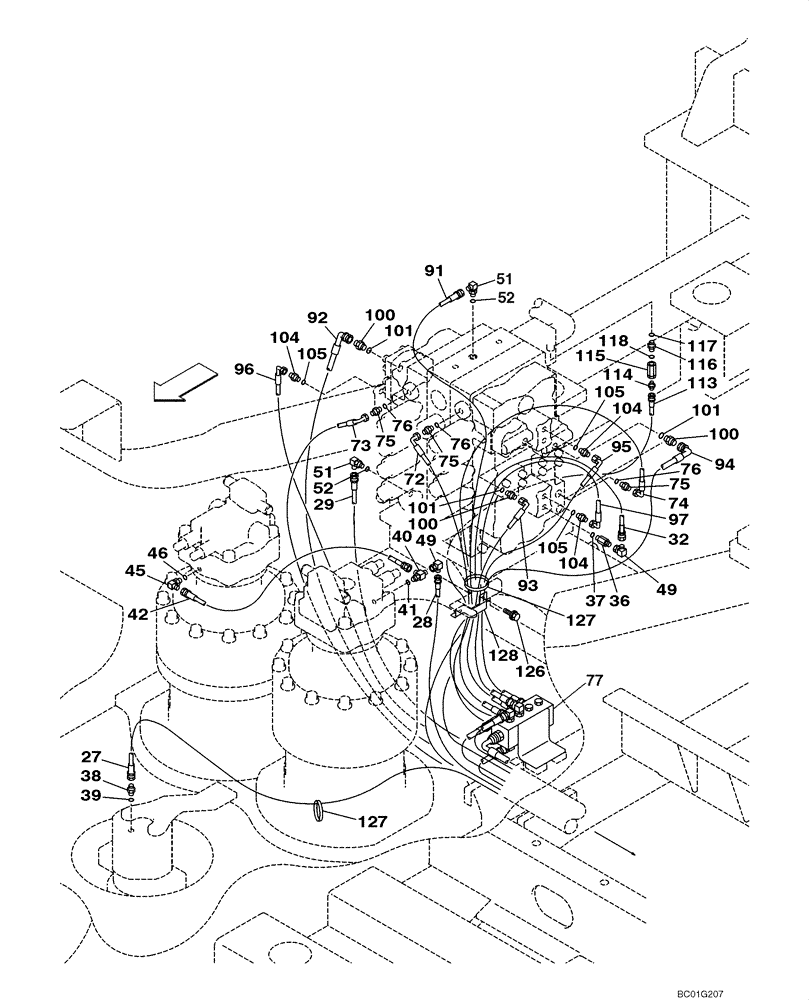

Запчасти Case CX800 (08-39) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

27

KHJ1247

HYDRAULIC HOSE

See Figure 08-38

1шт.

28

KHJ2735

HYDRAULIC HOSE,6.30 mm ID x 5100.00 mm

See Figure 08-38; Replaces KHJ1248

1шт.

29

KHJ1931

HOSE

See Figure 08-38

1шт.

32

KHJ1932

HOSE

See Figure 08-38

1шт.

36

162554A1

FITTING

Incl. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

38

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 39

1шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

159497A1

TEE

Incl. 41

1шт.

41

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

42

157854A1

HOSE,4mm ID x 750mm L

1шт.

45

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 46

1шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

49

163814A1

ELBOW

2шт.

51

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 52

2шт.

52

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

72

KHJ2734

HYDRAULIC HOSE,6.30 mm ID x 3800.00 mm

See Figure 08-37; Replaces 163438A1

1шт.

73

KHJ2735

HYDRAULIC HOSE,6.30 mm ID x 5100.00 mm

See Figure 08-37; Replaces KHJ1248

1шт.

74

KHJ2735

HYDRAULIC HOSE,6.30 mm ID x 5100.00 mm

See Figure 08-38; Replaces KHJ1248

1шт.

75

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 76

3шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

KUJ0321

MANIFOLD VALVE

See Figure 08-40

1шт.

91

159071A1

HOSE

See Figure 08-40

1шт.

92

KMJ1989

HOSE

See Figure 08-40

1шт.

93

KBJ2224

HOSE

See Figure 08-40

1шт.

94

159011A1

HOSE ASSY.

See Figure 08-40

1шт.

95

161491A1

HOSE

See Figure 08-40

1шт.

96

161658A1

HOSE ASSY.

See Figure 08-40

1шт.

97

KHJ1608

HOSE

See Figure 08-40

1шт.

100

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 101

3шт.

101

154475A1

O-RING

1шт.

104

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 105

3шт.

105

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

113

KHJ1772

HOSE

See Figure 08-37

1шт.

114

153603A1

ADAPTER

1шт.

115

151552A1

FILTER

1шт.

116

152899A1

HYD CONNECTOR

Incl. 117

1шт.

117

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

118

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

126

166350A1

BOLT

2шт.

127

150071A1

MOUNTING CLIP

2шт.

128

159025A1

CLAMP

1шт.
