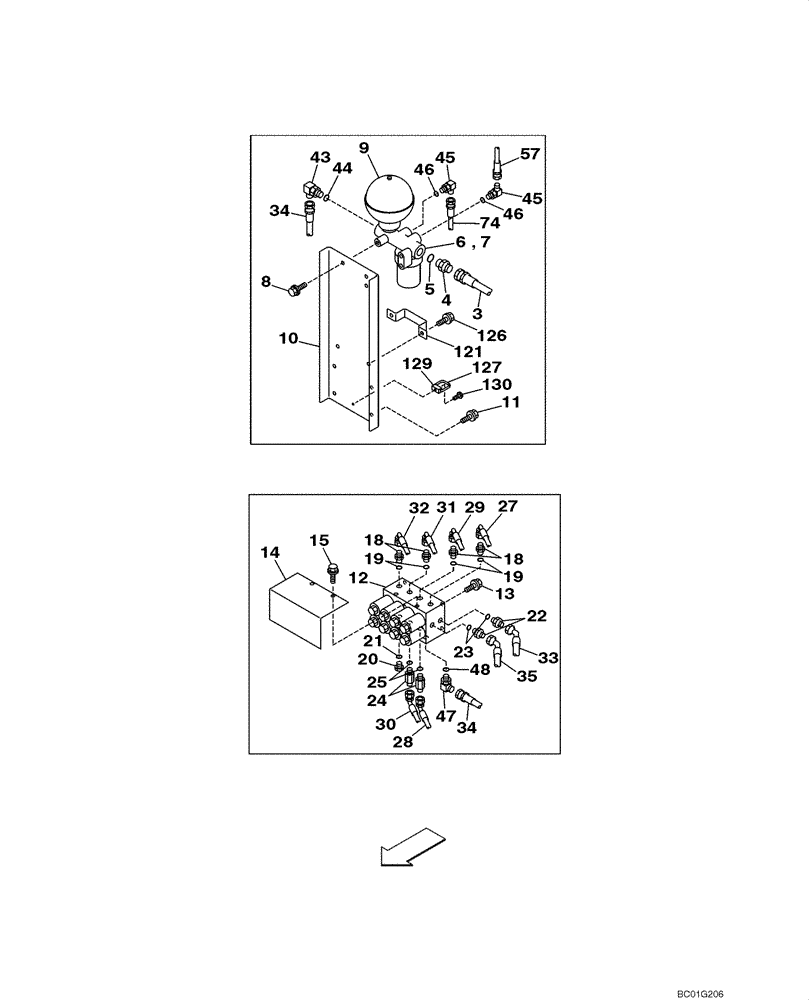

Запчасти Case CX800 (08-38) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

3

KAJ2882

HYDRAULIC HOSE,12.70 mm ID x 800.00 mm

See Figure 08-37

1шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

KHJ2562

MANIFOLD

Incl. 7, 7A; Replaces KHJ2431

1шт.

7

153233A1

HYDRAULIC OIL FILTER

1шт.

7a

164690A1

O-RING

Not Illustrated

1шт.

8

166350A1

BOLT

With Attached Washer

3шт.

9

KHJ1553

ACCUMULATOR

See Figure 08-37

1шт.

10

KUJ0319

BRACKET

1шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

12

KHJ15470

SOLENOID VALVE

See Figure 08-76B

1шт.

13

166351A1

BOLT,Sems, M10 x 20mm

With Attached Washer

4шт.

14

161551A1

COVER

1шт.

15

156159A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

2шт.

18

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 19

4шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

20

159002A1

PLUG

If Used, Incl. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

22

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 23

2шт.

23

154475A1

O-RING

1шт.

24

162554A1

FITTING

Incl. 25

2шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

27

KHJ1247

HYDRAULIC HOSE

See Figure 08-39

1шт.

28

KHJ2735

HYDRAULIC HOSE,6.30 mm ID x 5100.00 mm

See Figure 08-39; Replaces KHJ1248

1шт.

29

KHJ1931

HOSE

See Figure 08-39

1шт.

30

KHJ12870

HYDRAULIC HOSE

See Figure 08-37; Replaces KSJ2200

1шт.

31

KTJ1786

HOSE

See Figure 08-37

1шт.

32

KHJ1932

HOSE

See Figure 08-39

1шт.

33

152904A1

HOSE

See Figure 08-40

1шт.

34

152765A1

HOSE

1шт.

35

152988A1

HOSE

See Figure 08-37

1шт.

43

157935A1

ELBOW

Incl. 44

1шт.

44

154487A1

O-RING

1шт.

45

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 46

2шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

47

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 48

1шт.

48

154475A1

O-RING

1шт.

57

KHJ2721

HYDRAULIC HOSE,6.30 mm ID x 450.00 mm

See Figure 08-37; Replaces 152793A1

1шт.

74

KHJ2735

HYDRAULIC HOSE,6.30 mm ID x 5100.00 mm

See Figure 08-39; Replaces KHJ1248

1шт.

121

159034A1

CLAMP

1шт.

126

166350A1

BOLT

With Attached Washer

2шт.

127

150071A1

MOUNTING CLIP

1шт.

129

150860A1

COLLAR

1шт.

130

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.
