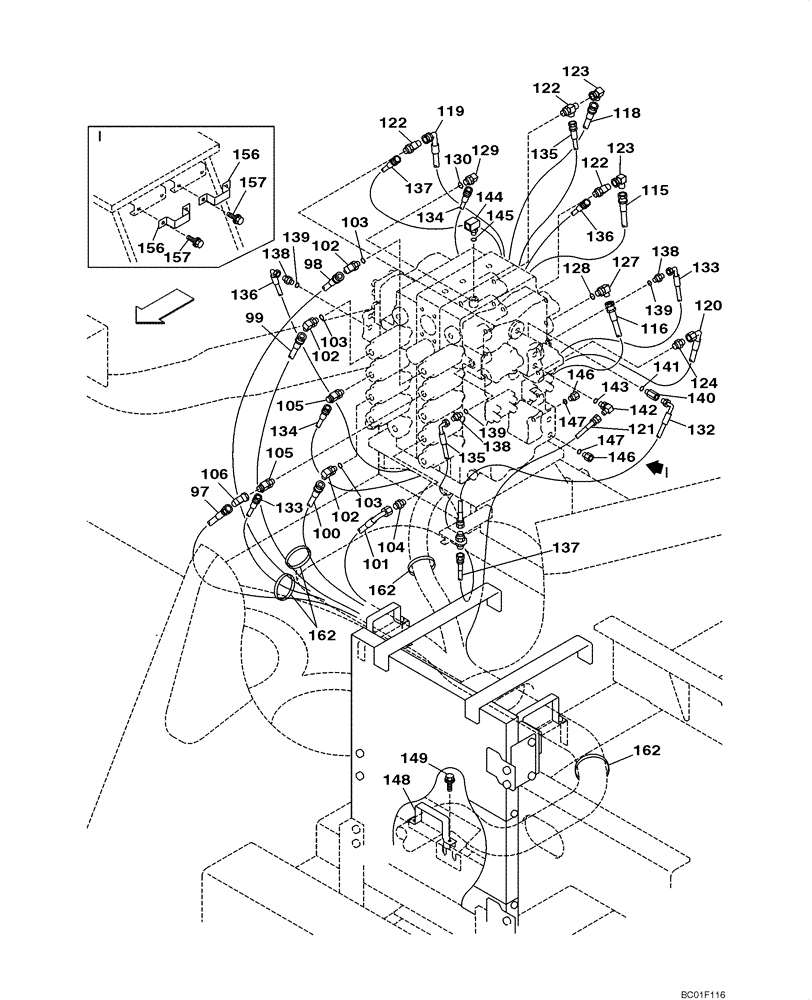

Запчасти Case CX800 (08-36) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITH LOAD HOLD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
Control Valve
1шт.
Models With Load Hold
1шт.
97
KRJ4970
HOSE
See Figure 08-34
1шт.
98
159063A1
HOSE
See Figure 08-34
1шт.
99
KRJ4762
HOSE
See Figure 08-35
1шт.
100
159063A1
HOSE
See Figure 08-35
1шт.
101
KRJ3894
HOSE
See Figure 08-35
1шт.
102
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 103
3шт.
103
154475A1
O-RING
1шт.
104
KAJ2851
ADAPTER
1шт.
105
163422A1
TEE
2шт.
106
153526A1
ELBOW
2шт.
115
159064A1
HOSE
See Figure 08-34
1шт.
116
KRJ4762
HOSE
See Figure 08-34
1шт.
118
KRJ4763
HOSE
See Figure 08-35
1шт.
119
KRJ4764
HOSE
See Figure 08-35
1шт.
120
KRJ4970
HOSE
See Figure 08-35
1шт.
121
159714A1
HOSE,3450.00 mm
See Figure 08-35
1шт.
122
163422A1
TEE
3шт.
123
153526A1
ELBOW
2шт.
124
KAJ2851
ADAPTER
1шт.
127
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 128
1шт.
128
154475A1
O-RING
1шт.
129
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 130
1шт.
130
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
132
161659A1
HYDRAULIC HOSE
1шт.
133
161482A1
HOSE ASSY.
1650 mm (65 in)
1шт.
134
153483A1
HOSE ASSY.
1шт.
135
161166A1
HOSE ASSY.
1шт.
136
161482A1
HOSE ASSY.
1650 mm (65 in)
1шт.
137
162251A1
HOSE
1шт.
138
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 139
3шт.
139
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
140
162554A1
FITTING
Incl. 141
1шт.
141
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
142
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 143
1шт.
143
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
144
KHJ0719
ELBOW
Incl. 145
1шт.
145
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
146
159026A1
SOCKET
Incl. 147
2шт.
147
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
148
159036A1
CLAMP
1шт.
149
166350A1
BOLT
With Attached Washer
2шт.
156
159025A1
CLAMP
2шт.
157
166350A1
BOLT
With Attached Washer
4шт.
162
150071A1
MOUNTING CLIP
4шт.
Выбрано товаров: 46
