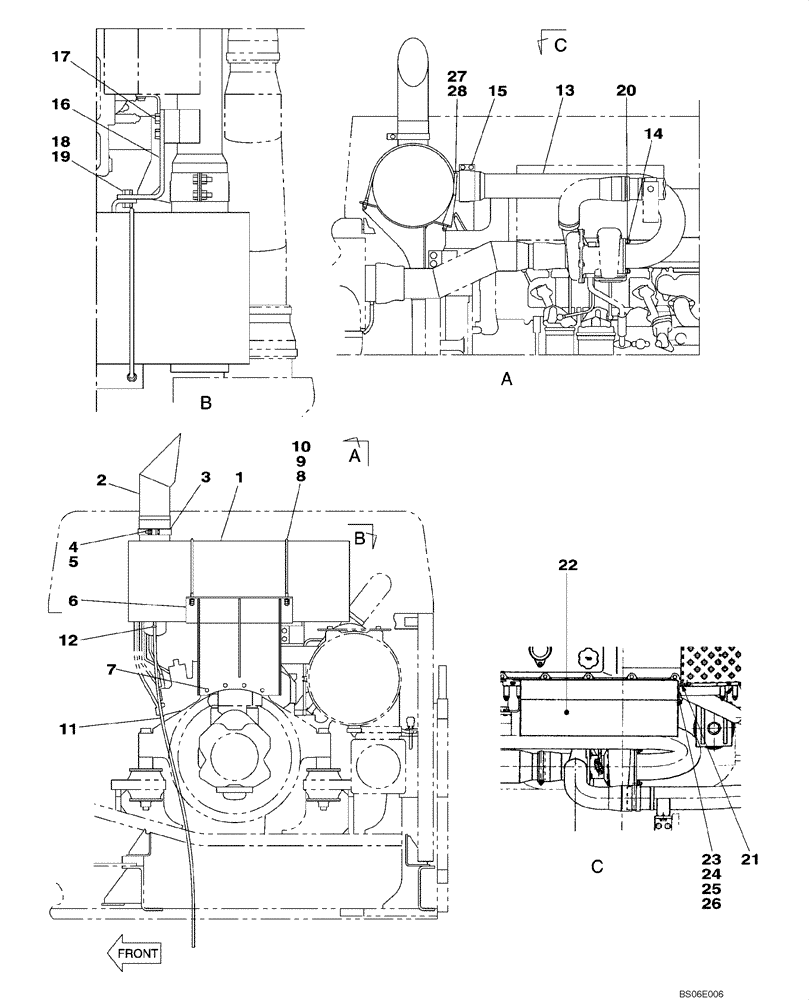

Запчасти Case CX800 (02-02) - EXHAUST SYSTEM - MUFFLER (02) - ENGINE

1

KUH0181

MUFFLER

1шт.

2

KUH0182

PIPE ASSY.

1шт.

3

KUH0183

CLAMP

1шт.

4

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

1шт.

5

162R010VR

NUT

2шт.

6

KUH10340

SUPPORT

Replaces KUH0184, KUH0203

2шт.

7

166352A1

BOLT

4шт.

8

KUH0185

U-BOLT

BOLT "U"

2шт.

9

150472A1

FLANGE NUT

8шт.

10

164R010SR

JAM NUT

4шт.

11

KHH0428

TUBE

1шт.

12

165952A1

MOUNTING CLIP

1шт.

13

KUH0186

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

14

153856A1

NUT

6-12шт.

15

KUH0187

COLLAR

1шт.

16

KUH0188

BRACKET

1шт.

17

166352A1

BOLT

2шт.

18

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

19

150811A1

WASHER

M12

2шт.

20

150409A1

WASHER

10,5 x 21 x 3,2 mm

6шт.

21

KUH0189

BRACKET

1шт.

22

KUH10360

COVER

Replaces KUH0190, KUH0204

1шт.

23

167182A1

BOLT,Sems, M8 x 25mm

M8 x 25

6шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

25

183-108VR

SPRING WASHER

3шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

27

KUH10350

COVER

Replaces KUH0201

1шт.

28

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

2шт.
