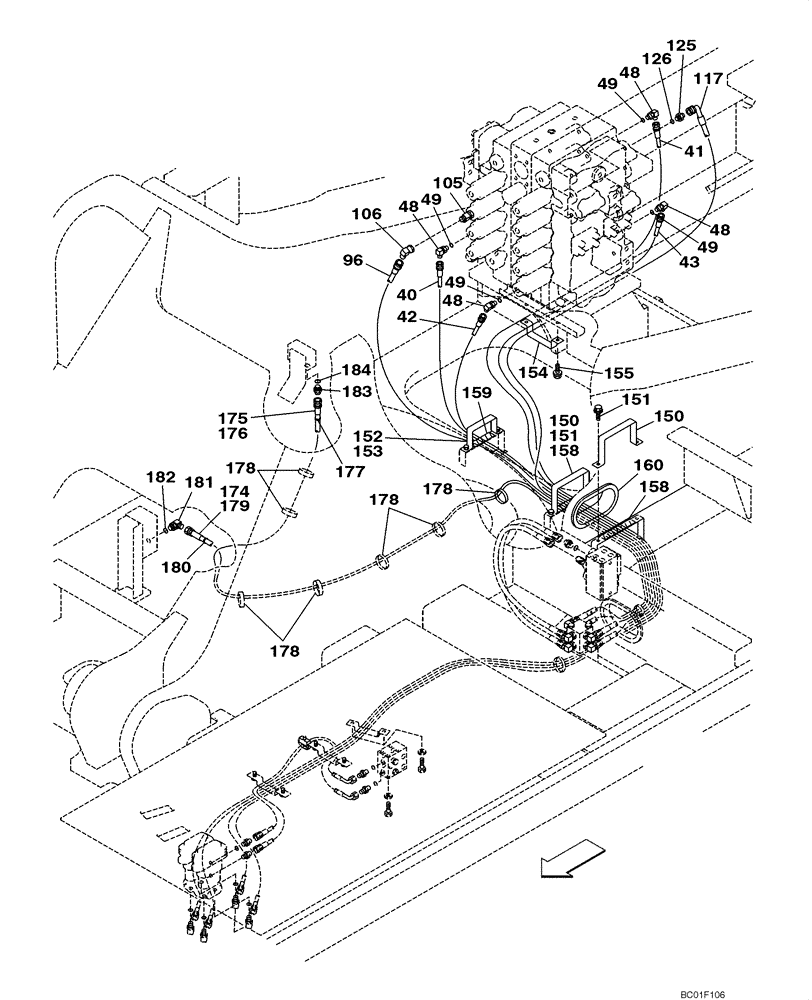

Запчасти Case CX800 (08-31) - PILOT CONTROL LINES, TRAVEL - MODELS WITH LOAD HOLD (08) - HYDRAULICS

Travel

1шт.

Models With Load Hold

1шт.

40

164941A1

HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm

See Figure 08-30

1шт.

41

MPJ5370

HOSE

See Figure 08-30

1шт.

42

164941A1

HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm

See Figure 08-30

1шт.

43

MPJ5370

HOSE

See Figure 08-30

1шт.

48

156554A1

ELBOW

Incl. 49

4шт.

49

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

96

157969A1

HOSE

See Figure 08-30

1шт.

105

163422A1

TEE

1шт.

106

153526A1

ELBOW

1шт.

117

KRJ4763

HOSE

See Figure 08-30

1шт.

125

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 126

1шт.

126

154475A1

O-RING

1шт.

150

KHJ1249

CLAMP

2шт.

151

166350A1

BOLT

With Attached Washer

4шт.

152

159040A1

CLAMP

1шт.

153

166350A1

BOLT

With Attached Washer

2шт.

154

159039A1

CLAMP

1шт.

155

166350A1

BOLT

With Attached Washer

2шт.

158

KHJ1250

SEAL, RUBBER

RUBBER SEAL

2шт.

159

159028A1

RUBBER BLOCK

1шт.

160

KTA1036

SEAL, RUBBER

RUBBER SEAL

1шт.

174

157972A1

HOSE ASSY.

See Figure 08-30

1шт.

175

159063A1

HOSE

See Figure 08-30

1шт.

176

KRH1445

PLASTIC-RUBBER TUBE

1шт.

177

150067A1

MOUNTING CLIP

150 mm (6 in)

1шт.

178

150071A1

MOUNTING CLIP

7шт.

179

KRH1434

PLASTIC-RUBBER TUBE

1шт.

180

150067A1

MOUNTING CLIP

150 mm (6 in)

1шт.

181

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 182

1шт.

182

154475A1

O-RING

1шт.

183

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 184

1шт.

184

154475A1

O-RING

1шт.
