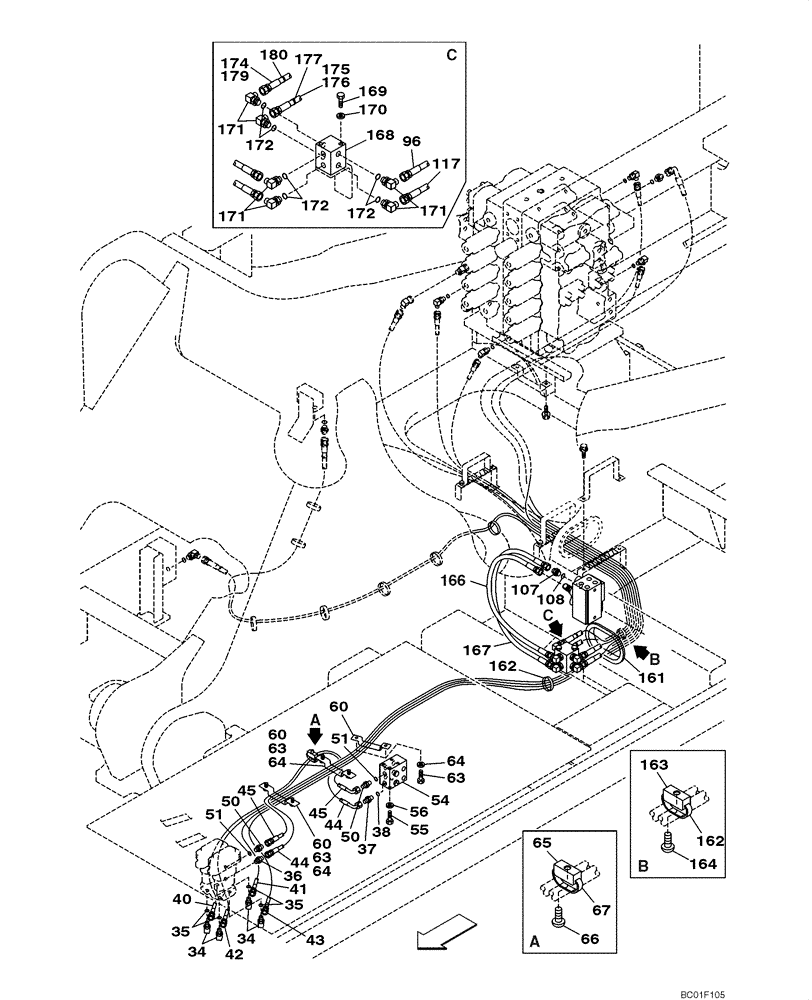

Запчасти Case CX800 (08-30) - PILOT CONTROL LINES, TRAVEL - MODELS WITH LOAD HOLD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
Travel
1шт.
Models With Load Hold
1шт.
34
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 35
4шт.
35
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
36
161841A1
HYD CONNECTOR
1шт.
37
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 38
1шт.
38
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
40
164941A1
HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm
See Figure 08-31
1шт.
41
MPJ5370
HOSE
See Figure 08-31
1шт.
42
164941A1
HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm
See Figure 08-31
1шт.
43
MPJ5370
HOSE
See Figure 08-311
1шт.
44
KAJ3524
HYDRAULIC HOSE
1шт.
45
159019A1
HOSE ASSY.
900 mm (35-1/2 in)
1шт.
50
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 51
2шт.
51
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
54
KRJ5903
MANIFOLD
Also See Figure 08-32
1шт.
55
827-8100
BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9
4шт.
56
153081A1
WASHER
4шт.
60
KHJ1394
CLAMP
3шт.
63
627-8012
BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd
6шт.
64
153081A1
WASHER
6шт.
65
150860A1
COLLAR
1шт.
66
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
1шт.
67
150071A1
MOUNTING CLIP
1шт.
96
157969A1
HOSE
See Figure 08-31
1шт.
107
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
Incl. 108
1шт.
108
154475A1
O-RING
1шт.
117
KRJ4763
HOSE
See Figure 08-31
1шт.
161
KRA1395
SEAL, RUBBER
RUBBER SEAL
1шт.
162
150071A1
MOUNTING CLIP
2шт.
163
150860A1
COLLAR
1шт.
164
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
1шт.
166
152753A1
HOSE,95.00 mm ID x 1100.00 mm
1шт.
167
152753A1
HOSE,95.00 mm ID x 1100.00 mm
1шт.
168
KUJ0304
MANIFOLD
1шт.
169
814-10100
BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8
2шт.
170
150409A1
WASHER
10,5 x 21 x 3,2 mm
2шт.
171
150916A1
ELBOW,90 Degree, 3/8" O-Ring x 3/8"
Incl. 172
6шт.
172
154475A1
O-RING
1шт.
174
157972A1
HOSE ASSY.
See Figure 08-31
1шт.
175
159063A1
HOSE
See Figure 08-31
1шт.
176
KRH1445
PLASTIC-RUBBER TUBE
1шт.
177
150067A1
MOUNTING CLIP
150 mm (6 in)
1шт.
179
KRH1434
PLASTIC-RUBBER TUBE
1шт.
180
150067A1
MOUNTING CLIP
150 mm (6 in)
1шт.
Выбрано товаров: 45
